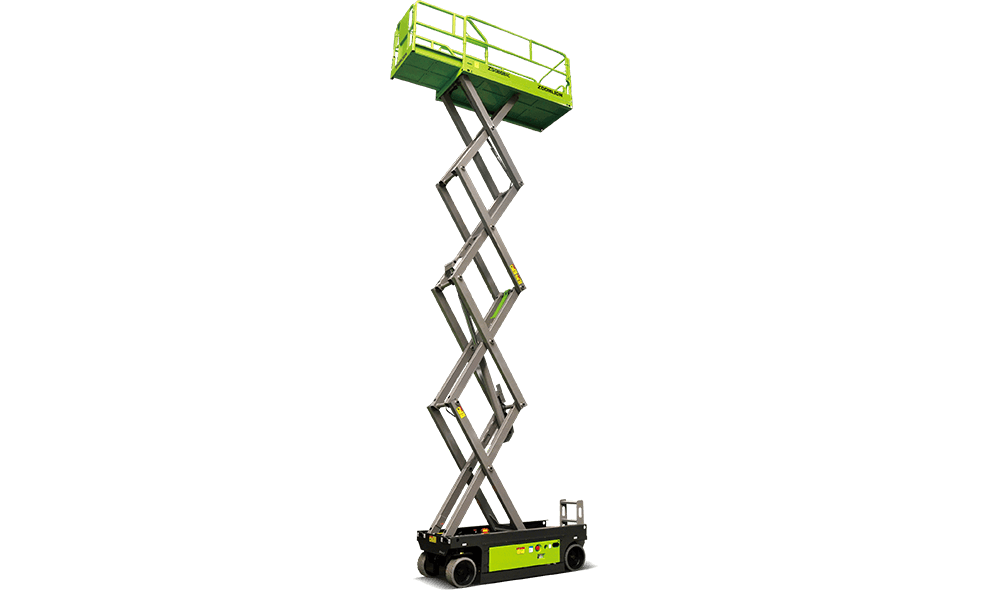

ZS0808AC AC/AC-LI SCISSOR SERIES
Electric powered scissor lifts, with work height ranging from 7.8m to 15.7m, providing high efficiency and safe operation around jobsites.
-
AC system offers higher working efficiency;
-
IP67 rated waterproof protection on AC wheel motorsfor longer lifespan
-
Knuckles lubrication-free and maintenance-free;
-
AC motor full lifecycle maintenance-free;
-
Swing-out tray easy to service.
High Performance
Cost Effectiveness
| Work Height | 10.00m/7.8m |
| A - Platform Height-Elevated | 8.00m/5.8m |
| B - Platform Height-Stowed | 1.26m |
| C - Platform Length | 2.30m |
| D - Platform Width | 0.81m |
| Platform Extension | 0.91m |
| E - Overall Height (Rails Up) | 2.4m |
| Overall Height (Rails Down) | 1.9m |
| F - Overall Length | 2.49m |
| G - Overall Width | 0.81m |
| H - Wheelbase | 1.85m |
| I - Ground Clearance (Stowed) | 0.11m |
| J - Ground Clearance (Raised) | 0.02m |
| Platform Capacity | 230kg |
| Capacity on Deck Extension | 113kg |
| Max. Number of Workers | 2/1 |
| Drive Speed (Stowed) | 4km/h |
| Drive Speed (Raised) | 0.8km/h |
| Turning Radius (Inside) | 0.1m |
| Turning Radius (Outside) | 2.1m |
| Lifting Motor | 24V/3.3KW |
| Drive Motor | 2x0.75KW |
| Up/Down Time | 31s/40s |
| Gradeability | 25%(14°) |
| Max. Working Slope (Lateral/Vertical) | 1.5°/3° |
| Control | Proportional Control |
| Drive | Front Wheels |
| Brake | Front Wheels |
| Tire | ф381mm×127mm |
| Battery | 4×6V/170Ah (HOPPECKE) 4×6V/190Ah (QUIMO) |
| Charger | 24V/30A |
| Charger (Option) | - |
| Gross | 2090kg |
