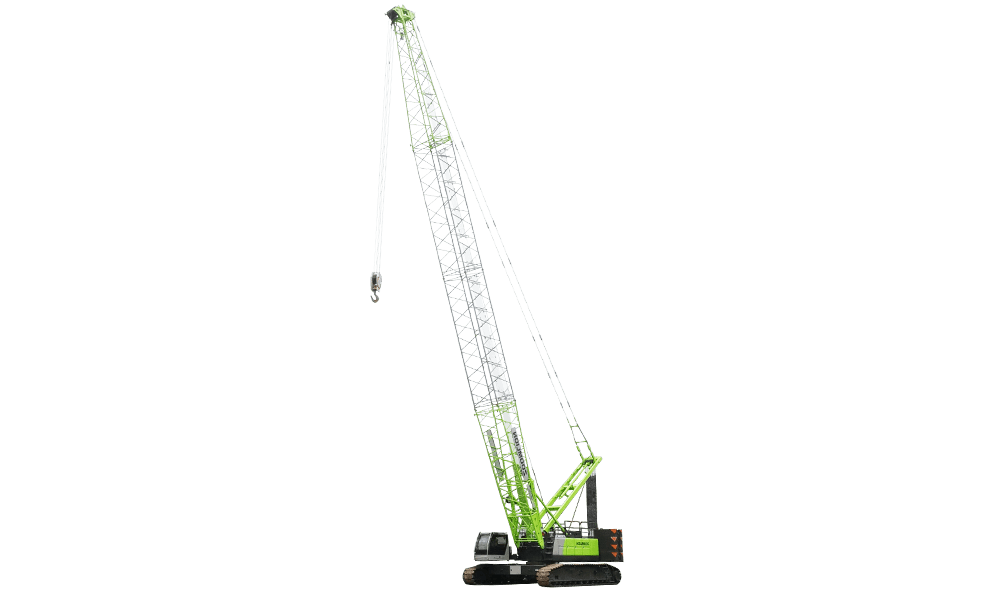

CRAWLER CRANE
Items | Unit | Values | Notes |
Max. lifting moment | t×m | 906.5 | |
Max. lifting capacity | t | 150 | |
Max. lifting capacity of fixed jib | t | 25.2 | |
Main boom length | m | 19～76 | |
Fixed jib length | m | 13～31 | |
Max. length of main boom + fixed jib | m | 64＋31 | |
Fixed jib angle | ° | 10，30 | |
Single rope speed of H1 | m/min | 0～140 | The 6th layer |
Single rope speed of H2 | m/min | 0～110 | The 6th layer |
Single rope speed of derricking winch | m/min | 0～66 | The 5th layer |
