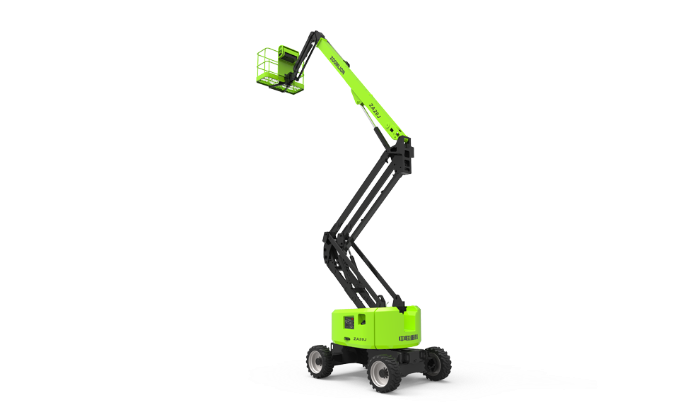

ZA32J DIESEL ARTICULATING BOOM LIFT
Electric articulating boom lifts deliver eco-friendly footprint, precise maneuvering, greater endurance and extreme flexibility.
-
Provide heavy lifting of 250kg load for 28% higher efficiency
-
Build-in multiple pressure control leveling system to enhance stability
-
Precise load sensing system to improve overload safety operations
-
Deadweight Lowering System for smooth operation and energy efficiency
-
Outstanding below ground reach of 5.7m
| Work Height | 33.85m |
| Platform Height | 31.85m |
| Horizontal Outreach | 21.17m |
| Up and Over Height | 14.52m |
| A - Stowed Length | 12.6m |
| B - Stowed Width | 2.49m |
| C - Stowed Height | 3.1m |
| D - Platform Length | 2.44m |
| E - Platform Width | 0.91m |
| F - Wheelbase | 3.81m |
| G - Ground Clearance | 0.42m |
| Platform Capacity | 250kg |
| Drive Speed | 5.2km/h |
| Gradeability | 45% |
| Axles Oscillation | 0.2m |
| Turning Radius (Inside) | 7.7/3.3m |
| Turning Radius (Outside) | 10.8/8.2m |
| Turntable Swing | 360° continuous |
| Platform Rotation | ±90° |
| H-Tail Swing | 0 |
| Max. Working Slope | - |
| Max. Wind Speed | 12.5m/s |
| Diesel Engine | Cummins QSF2.8 54kw/2400rpm Kubota V2607 55.4kw/2700rpm |
| Engine Power | - |
| Fuel Tank Capacity | 200L |
| Auxiliary Power | 12V |
| Control Voltage | 12V |
| Hydraulic System Capacity | 300L |
| Hydraulic Tank Capacity | 200L |
| Type | 445/50D710 Foam-filled Tires |
| Gross | 19200kg |
相关产品
-

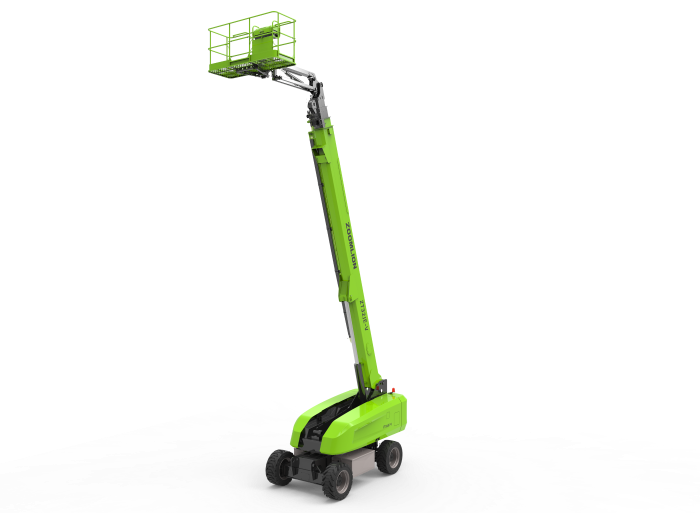

ZT42JEH ELECTRIC TELESCOPIC BOOM LIFTS
-
