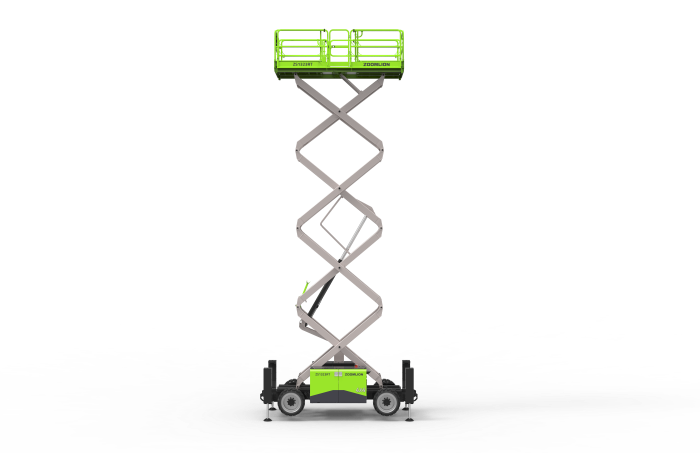

ZS1323RT DIESEL ROUGH TERRAIN SCISSOR LIFT
Strong capacity of 680kg (1500lb) with high working efficiency;
4WD and axle oscillation provide great off-road capability;
One-Click leveling function;
Bilateral power system effective to lower noise.
Knuckles lubrication-free and maintenance-free;
Swing-out tray easy to service.
| Work Height | 15m |
| A Platform Height-Elevated | 13m |
| B Platform Height-Stowed | 1.83m |
| C Platform Dimension (Length) | 3.98m |
| D Platform Dimension (Width) | 1.83m |
| Platform Extension | 1.3m |
| Overall Height (Rails Up) | 2.95m |
| E Overall Height (Rails Down) | 2.26m |
| F Overall Length | 3.98/4.88m |
| G Overall Width | 2.3m |
| H Wheelbase | 2.9m |
| I Ground Clearance | 0.275m |
| Platform Capacity | 680kg |
| Capacity on Deck Extension | 230kg |
| Drive Height | 13m |
| Max. Number of Workers | 7 |
| Drive Speed (Stowed) | 6.5km/h |
| Drive Speed (Raised) | 0.5km/h |
| Turning Radius (Inside) | 2.75m |
| Turining Radius (Outside) | 5.8m |
| Up/Down Time | 48/52s |
| Gradeability | 50%(28°) |
| Max. Working Slope (Lateral/Vertical) | 2°/3° |
| Drive | 4WD |
| Tire | 33×12-20/8 Solid Tire |
| Engine | V2403-CR-E5B-ZML-2 |
| Engine Power | 36.8kw/2700rpm |
| Fuel Tank Capacity | 105L |
| Diesel Tank | 100L |
| Gross | 7850kg |
