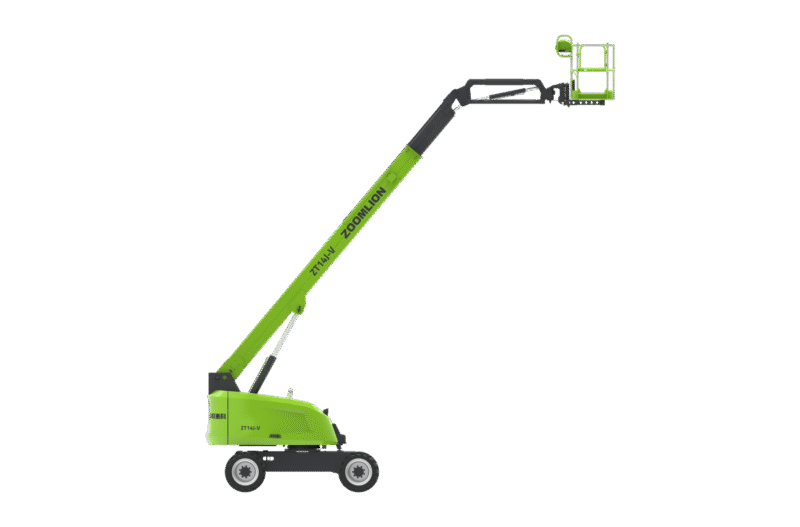

ZT14J DIESEL TELESCOPIC BOOM LIFT
-
300kg/454kg dual capacity for flexible application
-
Smooth leveling and good steering sensitivity
-
EuroVemission, green and environmental protection
-
Compact design and folded jib, easy to transport
| Work Height | 16.6m |
| Platform Height | 14.6m |
| Horizontal Outreach | 12.7m |
| A - Stowed Length | 9.6m |
| B - Stowed Width | 2.28m |
| C - Stowed Height | 2.52m |
| D - Platform Length | 2.44m |
| E - Platform Width | 0.91m |
| F - Wheelbase | 2.36m |
| Tread | 2.28m |
| G - Ground Clearance | 0.36m |
| Platform Capacity (Unrestricted/Restricted) | 300/454kg |
| Drive Speed (Stowed) | 5.5km/h |
| Gradeability | 45%(24°) |
| Turning Radius (Inside) | 2.06m |
| Turning Radius (Outside) | 4.78m |
| Turntable Swing | 360° continuous |
| Platform Rotation | ±90° |
| Tail Swing | 0.9m |
| Max. Wind Speed | 12.5m/s |
| Engine | KUBOTAV2403 (EU V) KUBOTA V2403 (CN III) Weichai WP3.2G50 (CN IV) |
| Fuel Tank Capacity | 150L |
| Control Voltage | 120V DC |
| Hydraulic Tank Capacity | 90L |
| Drive Mode | 4WD |
| Steering Mode | Front -wheel |
| Type | Foam-filled tire |
| Gross | 8500kg |
