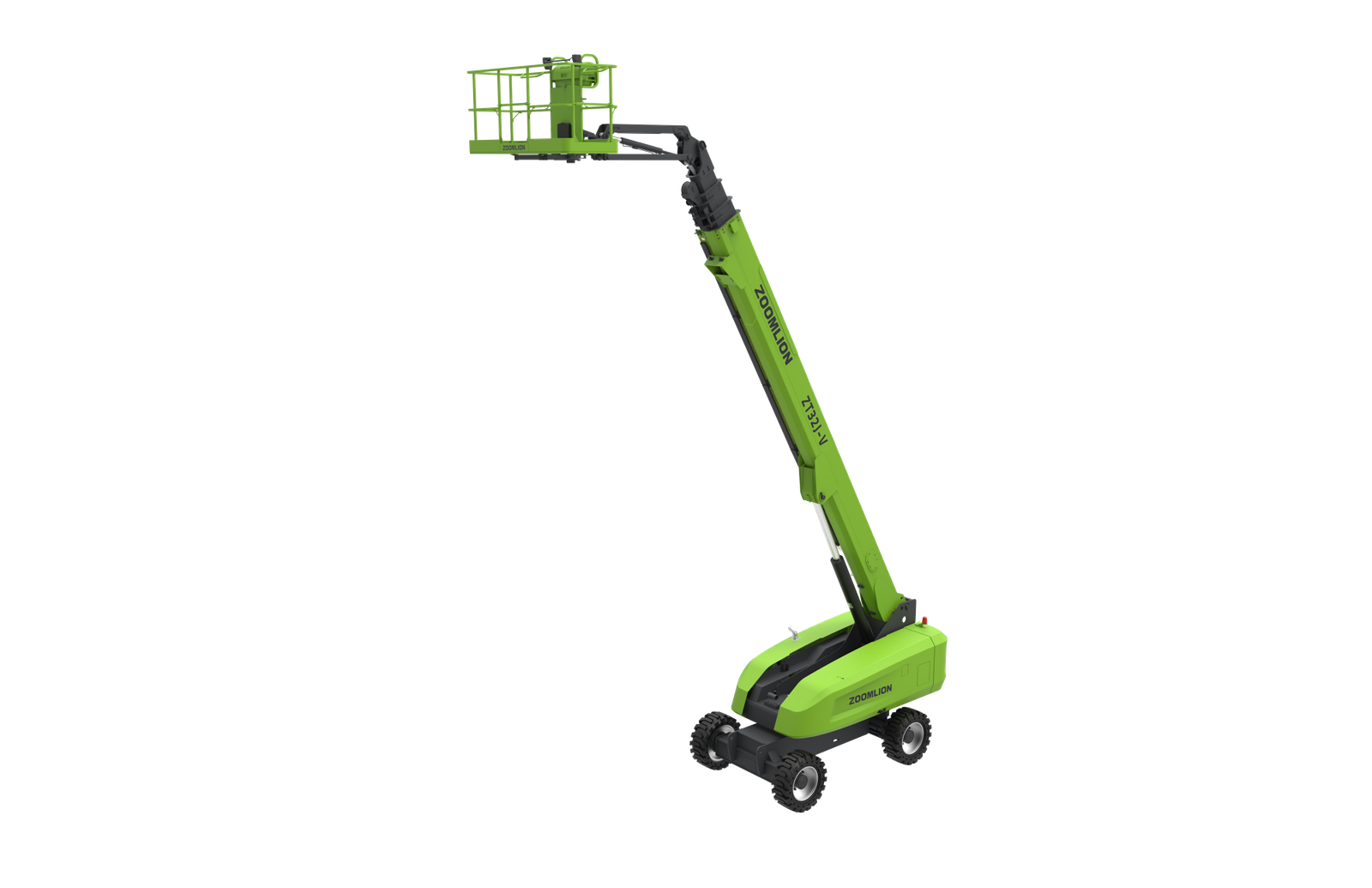

ZT32J DIESEL TELESCOPIC BOOM LIFT
-
Largest diesel-powered telescopic boom lift with non-extension axle,work height of 34.3m
-
Hexagonal boom design with good stiffness
-
Diesel-powered hydraulic system and load sensitive system,energy saving by 13%
-
Adapt to extreme cold weather of -23°C and hostile working condition of an elevation of 4,100m
| Work Height | 34.3m |
| Platform Height | 32.3m |
| Horizontal Outreach | 19.2m |
| A - Stowed Length | 12.9m |
| B - Stowed Width | 2.49m |
| C - Stowed Height | 2.75m |
| D - Platform Length | 2.44m |
| E - Platform Width | 0.91m |
| F - Wheelbase | 2.8m |
| Tread | 2.49m |
| G - Ground Clearance | 0.41m |
| Platform Capacity (Unrestricted/Restricted) | 300/454kg |
| Drive Speed (Stowed) | 5.5km/h |
| Gradeability | 45%(24°) |
| Turning Radius (Inside) | 3.5m |
| Turning Radius (Outside) | 6.1m |
| Turntable Swing | 360° continuous |
| Platform Rotation | ±90° |
| Tail Swing | 1.52m |
| Jib (Range of Articulation) | 130°(-55°~75°) |
| Max. Wind Speed | 12.5m/s |
| Engine | Kubota V2607(Euro StageV) Kubota V3307(China Stage III) Weichai WP2.3NG75(China Stage IV) |
| Fuel Tank Capacity | 150L |
| Control Voltage | 12V DC |
| Hydraulic Tank Capacity | 150L |
| Drive Mode | 4WD |
| Steering Mode | Front-wheel |
| Type | Foam-filled tire |
| Gross | 18060kg |
