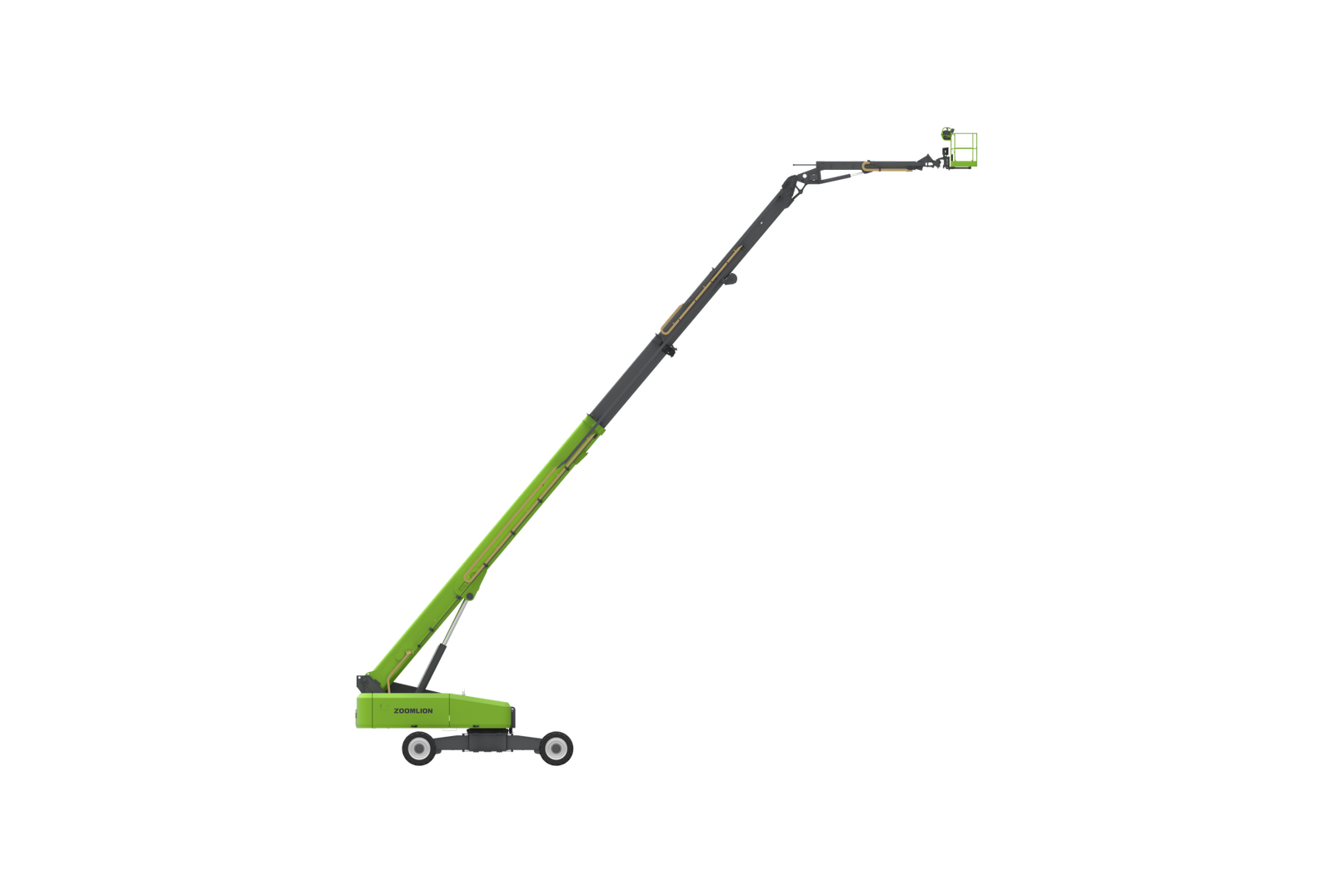

ZT51J DIESEL TELESCOPIC BOOM LIFT
-
Work height up to 50.6m and horizontal outreach up to 25m
-
Industry’s first polygonal innovative boom, boom weight reduced by more than 10%,vertical stiffness increased by 25%,torsion resistance increased by 20%, and offers small deformation and stable control
-
X outrigger offers larger working envelope, stronger off-road ability, and better stability
-
Intelligent control of four-wheel steering ensures coordination and consistency of outriggers during steering and expansion
-
All-wheel steering angles are automatically matched ensure straight travel
-
Stowed jib for ease of transportation, shortening the transporting length and cutting the transporting cost
| Work Height | 50.6m |
| Platform Height | 48.6m |
| Horizontal Outreach | 25m |
| A - Stowed Length | 14.2m |
| B - Stowed Width | 2.5m |
| C - Stowed Height | 3.06m |
| D - Platform Length | 2.44m |
| E - Platform Width | 0.91m |
| F - Wheelbase | 5.357/4.69m |
| Tread | 2.5/5.15m |
| G - Ground Clearance | 0.4m |
| Platform Capacity (Unrestricted/Restricted) | 300/454kg |
| Drive Speed (Stowed) | 4.5km/h |
| Gradeability | 45%(24°) |
| Turning Radius (Inside) | 6.79/2.57m |
| Turning Radius (Outside) | 8.43/6.39m |
| Turntable Swing | 360° continuous |
| Platform Rotation | ±90° |
| Tail Swing | 1.95m |
| Jib (Range of Articulation) | 125°(-55~70°) |
| Max. Wind Speed | 12.5m/s |
| Engine | Cummins QSF3.8(CN III) 73kw Cummins F4.5(CN IV) 74kw Cummins F3.8(EUV) 75kw |
| Fuel Tank Capacity | 200L |
| Control Voltage | 12V DC |
| Hydraulic Tank Capacity | 400L |
| Drive Mode | 4WD |
| Steering Mode | 4WS/Front wheel/Crab |
| Type | Foam-filled Tires |
| Gross | 25000kg |
