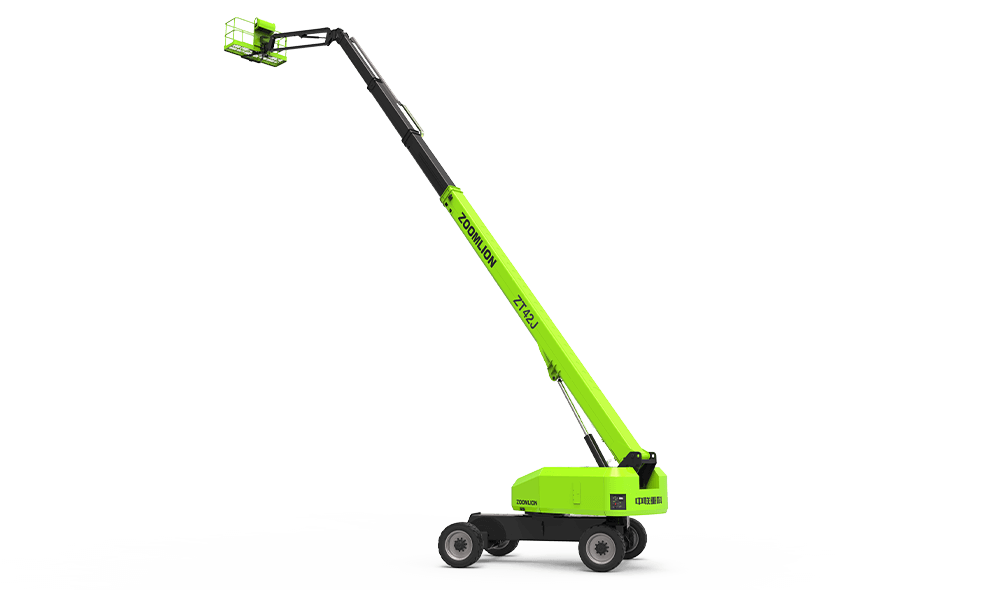

ZT42J DIESEL TELESCOPIC BOOM LIFT
9 8 月, 2025
ZT38J DIESEL TELESCOPIC BOOM LIFT
Diesel-powered telescopic boom lifts can get the work done at height with super efficiency in large-scale, outdoor constructions and industrial applications.
-
Perform dual capacity design, up to 300/454kg (660/1000lb)
-
Rough terrain chassis features swing axle function, easy to achieve 45% gradeability
-
Creative outrigger telescopic method; strong field applicability, low telescopic failure rate, and effective prevention of abnormal tire wear （option）
-
Smooth & stable boom extension, the telescopic efficiency of the boom is increased by 30% compared with that of the double-cylinder telescopic boom
-
Better work envelop performance, 10% larger than competitor
| Work Height | 40.2m |
| Platform Height | 38.2m |
| Horizontal Outreach | 25m |
| A - Stowed Length | 12.26m |
| B - Stowed Width | 2.49m |
| C - Stowed Height | 3m |
| D - Platform Length | 2.44m |
| E - Platform Width | 0.91m |
| F - Wheelbase | 3.81m |
| Tread | 2.49/3.87m |
| G - Ground Clearance | 0.41m |
| Platform Capacity (Unrestricted/Restricted) | 300/454kg |
| Drive Speed (Stowed) | 5km/h |
| Gradeability | 45%(24°） |
| Turning Radius (Inside) | 3.3/7.7m |
| Turning Radius (Outside) | 8.2/10.8m |
| Turntable Swing | 360° continuous |
| Platform Rotation | ±90° |
| Tail Swing | 1.48m |
| Jib (Range of Articulation) | 135°（﹣60°~75°） |
| Max. Wind Speed | 12.5m/s |
| Engine | Cummins QSF 2.8 54kW/2400rpm (EU Ⅲ) Kubota V2607 55.4kW/2700rpm (EU Ⅴ) |
| Fuel Tank Capacity | 200L |
| Control Voltage | 12V DC |
| Hydraulic Tank Capacity | 250L |
| Drive Mode | 4WD |
| Steering Mode | Four wheels/Front wheel/Crab |
| Type | IN445/50D710 Foam-filled Tires |
| Gross | 20680kg |
