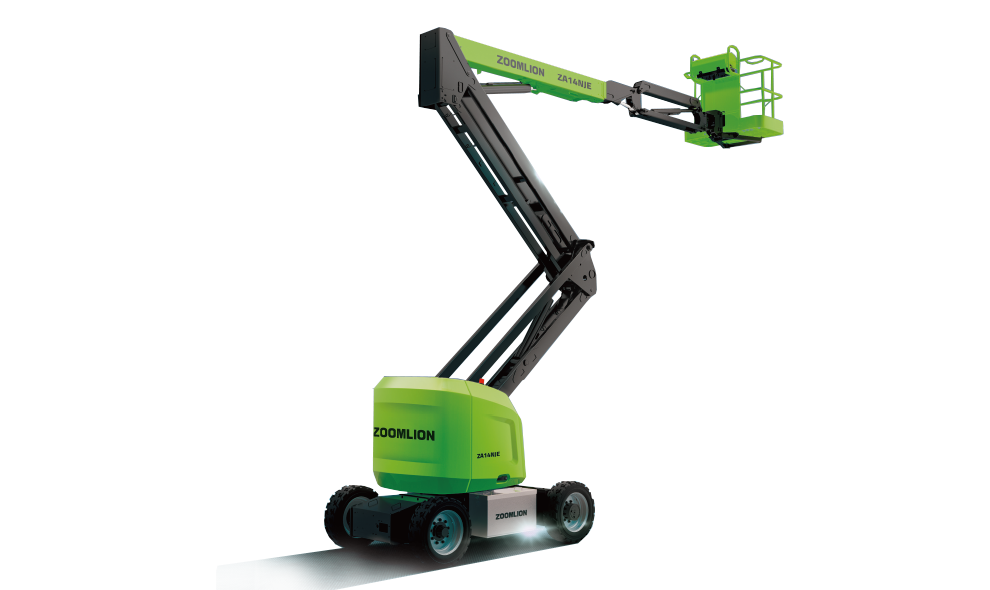

ZA14NJE-Li ELECTRIC ARTICULATING BOOM LIFT
Center layout, great structural rigidity, and small boom deflection Advanced dual control system (valve control + pump control) offers a energy-saving, smooth and efficient control
Independent auxiliary power system for more secure application Large capacity tube battery + fast charger for longer battery lift of 5 years and working time (ZA14NJE Only) Large-capacity lithium battery features long-lasting battery life of 8 years and 5-year warranty, the whole life cycle is maintenance-free (ZA14NJE-Li Only) IStandard fast charger for short charging time of 7 hours (ZA14NJE-Li Only) Accurate and efficient traveling AC drive system provides strong power and stable control, motor maintenance-free
Accurate and efficient traveling AC drive system provides strong power and stable control, motor maintenance-free
-
Center layout, great structural rigidity, and small boom deflection
-
Advanced dual control system (valve control + pump control) offers a energy-saving, smooth and efficient control
-
Accurate and efficient traveling AC drive system provides strong power and stable control, motor maintenance-free
-
Independent auxiliary power system for more secure application
-
Large capacity tube battery + fast charger for longer battery lift of 5 years and working time (ZA14NJE Only)
-
Large-capacity lithium battery features long-lasting battery life of 8 years and 5-year warranty, the whole life cycle is maintenance-free (ZA14NJE-Li Only)
-
IStandard fast charger for short charging time of 7 hours (ZA14NJE-Li Only)
-
Accurate and efficient traveling AC drive system provides strong power and stable control, motor maintenance-free
| Work Height | 16m |
| Platform Height | 14m |
| Horizontal Outreach | 8.14m |
| Up and Over Height | 7.74m |
| A - Stowed Length | 6.6m |
| B - Stowed Width | 1.75m |
| C - Stowed Height | 2m |
| D - Platform Length | 1.52m |
| E - Platform Width | 0.76m |
| F - Wheelbase | 2.05m |
| G - Ground Clearance | 0.20m |
| Platform Capacity | 230kg |
| Drive Speed | 5.4km/h |
| Gradeability | 30% (17°) |
| Turning Radius (Inside) | 0.79m |
| Turning Radius (Outside) | 3.15m |
| Turntable Swing | 360° non-continuous |
| Platform Rotation | ±90° |
| H-Tail Swing | 0.2m |
| Max. Working Slope | 3/4° |
| Max. Wind Speed | 12.5m/s |
| Battery | 48V/315Ah Li-ion battery |
| Charger | 48V/60A |
| Drive Motor | AC 32V/3.3kW |
| Lift Motor | AC 32V/7kw |
| Auxiliary Power | 12V DC Electrical pump |
| Hydraulic Tank Capacity | 30L |
| Type | 250-15 Solid tire 240/55D17.5 Foam-filled tire |
| Gross | 6700kg |
