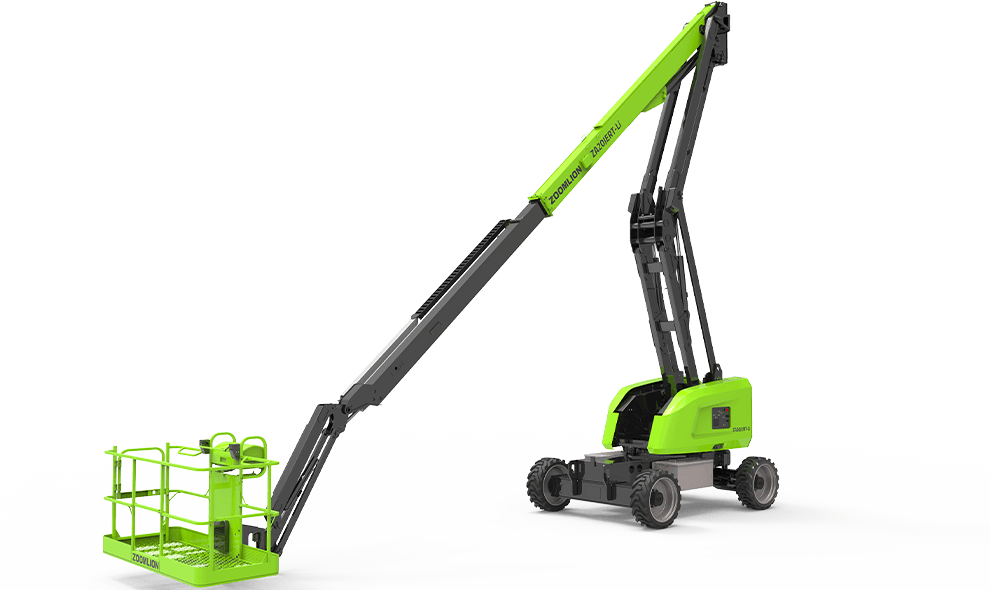

ZA20JERT-Li ELECTRIC ARTICULATING BOOM LIFT
RT Electric Articulating Boom Lifts feature strong rough terrainability, providing exceptional off-road performance and quiet working conditions around jobsites.
-
Provide greater work height of 21.38m and lift capacity of250kg/360kg than competitor
-
Fast lift system directly lowers the boom from the highest positionto the ground, no need to fold the boom to improve work efficiency
-
Accurate and efficient traveling AC drive system and on-boardmotion AC drive system provides strong power, stable control andmaintenance-free motor
-
Independent auxiliary power system for more secure application
-
Large reduction ratio reducer provides stronger gradeability
-
Large-capacity lithium battery features long-lasting battery life,and number of charge and discharge cycles reaches 2500 times.the whole life cycle is maintenance-free, and a 5-year warranty isprovided
| Work Height | 21.38m |
| Platform Height | 19.38m |
| Horizontal Outreach | 12.1m |
| Up and Over Height | 8.25m |
| A - Stowed Length | 8.8m |
| B - Stowed Width | 2.46m |
| C - Stowed Height | 2.52m |
| D - Platform Length | 244m |
| E - Platform Width | 0.91m |
| F - Wheelbase | 2.52m |
| G - Ground Clearance | 0.4m |
| Platform Capacity | 250kg/360kg |
| Drive Speed | 5.2km/h |
| Gradeability | 45% |
| Axles Oscillation | 0.20m |
| Turning Radius (Inside) | 2.78m |
| Turning Radius (Outside) | 5.49m |
| Turntable Swing | 360° continuous |
| Platform Rotation | ±90° |
| H-Tail Swing | 0.64m |
| Max. Working Slope | 3°/5° |
| Max. Wind Speed | 12.5m/s |
| Battery | 48V/315Ah Li-ion battery |
| Charger | 48V/60A |
| Drive Motor | AC 32V |
| Lift Motor | AC 32V |
| Auxiliary Power | 12V DC Electrical pump |
| Hydraulic Tank Capacity | 75L |
| Type | 33×12 D610 Foam-filled tire |
| Gross | 9250kg |
