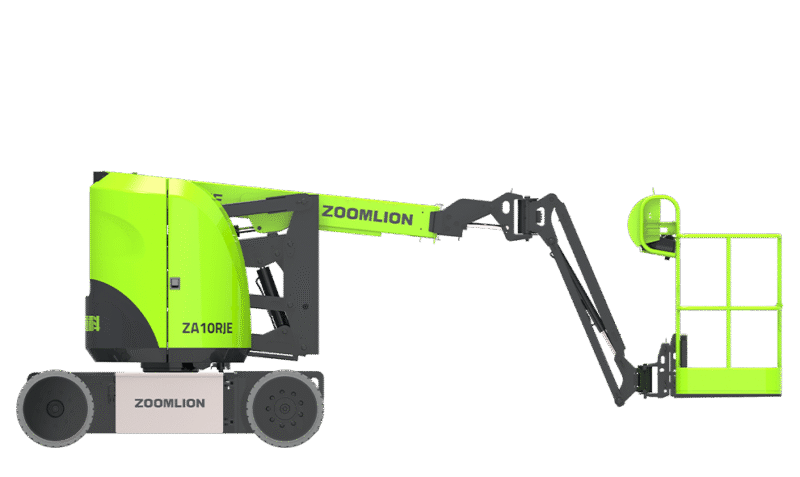

ZA10RJE ELECTRIC ARTICULATING BOOM LIFT
Electric articulating boom lifts deliver eco-friendly footprint, precise maneuvering, greater endurance and extreme flexibility.
-
Center layout, great structural rigidity, and small boom deflection
-
Advanced dual control system (valve control + pump control) offers a energy-saving, smooth and efficient control
-
±90° Jib rotation offers great up and over height
-
Compact dimension of 1.19m (3ft 11in) stowed width, ideal for narrow working conditions
-
Tubular batteries feature long working time and lifespan, and easy for maintenance
| Work Height | 11.55m |
| Platform Height | 9.55m |
| Horizontal Outreach | 6.85m |
| Up and Over Height | 4.6m |
| A - Stowed Length | 5.5m |
| B - Stowed Width | 1.19m |
| C - Stowed Height | 1.98m |
| D - Platform Length | 1.17m |
| E - Platform Width | 0.76m |
| F - Wheelbase | 1.65m |
| G - Ground Clearance | 0.1m |
| Platform Capacity | 230kg |
| Drive Speed | 5km/h |
| Gradeability | 35% (19°) |
| Axles Oscillation | - |
| Turning Radius (Inside) | 1.7m |
| Turning Radius (Outside) | 3.25m |
| Turntable Swing | ±90° |
| Platform Rotation | ±90° |
| H-Tail Swing | 0m |
| Max. Working Slope | - |
| Max. Wind Speed | 12.5m/s |
| Battery | 24×2V/330Ah |
| Charger | 48V/35A |
| Drive Motor | AC 32V/3.3kW |
| Lift Motor | DC 48V/4.5kW |
| Auxiliary Power | Electric pumpDC |
| Hydraulic Tank Capacity | 15L |
| Type | 22×7×17.75 seamless tire |
| Gross | 6550kg |
