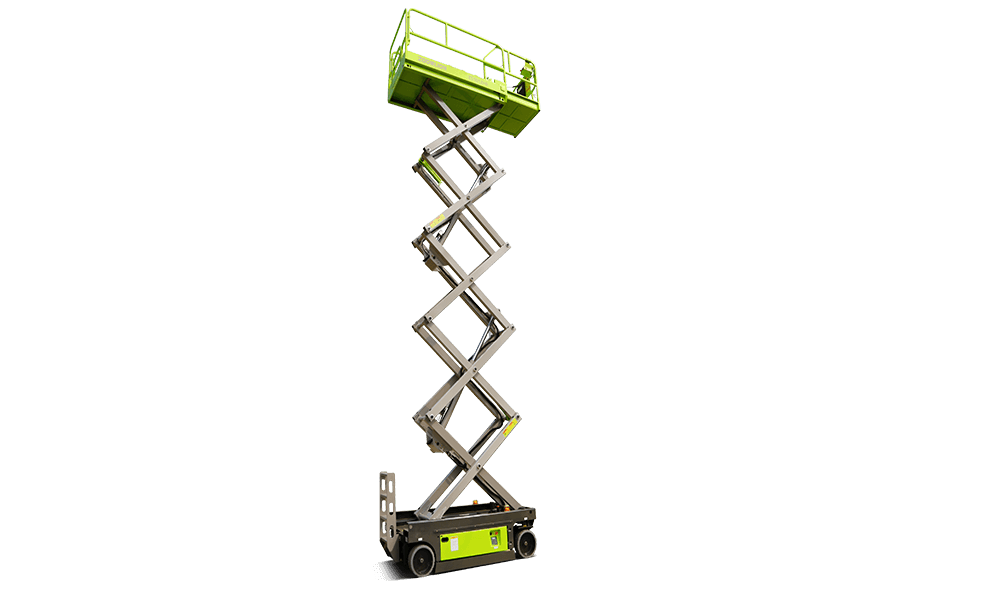

ZS1012HD HD/HD-LI SCISSOR SERIES
Eco-friendly scissors feature cutting-edge driving system with high-quality batteries.
-
Optimized design increases 20% more duty cycles with longer runtime
-
Precision control for stable operation
-
Large ground clearance (Pothole Protection retracted), great trafficability
-
Common components and modular design, easy to maintenance
-
Bilateral swing-out trays [battery & hydraulic), simple to service
-
Robust & build to last, reliable and safe
Cost Effectiveness
Easy Maintenance & Service
| Work Height | 11.80m |
| A - Platform Height-Elevated | 9.80m |
| B - Platform Height-Stowed | 1.39m |
| C - Platform Length | 2.30m |
| D - Platform Width | 1.12m |
| Platform Extension | 0.91m |
| E - Overall Height (Rails Up) | 2.53m |
| Overall Height (Rails Down) | 2m |
| F - Overall Length | 2.49m |
| G - Overall Width | 1.15m |
| H Wheelbase | 1.85m |
| I - Ground Clearance (Stowed) | 0.11m |
| J - Ground Clearance (Raised) | 0.02m |
| Platform Capacity | 350kg |
| Capacity on Deck Extension | 113kg |
| Max. Number of Workers | Indoor: 2 Outdoor: 1 |
| Drive Speed (Stowed) | 3.5km/h |
| Drive Speed (Raised) | 0.8km/h |
| Turning Radius (Inside) | 0.1m |
| Turning Radius (Outside) | 2.2m |
| Up/Down Drive Motor | 24V/4.5KW |
| Up/Down Time | 60s/35s |
| Gradeability | 25%(14°) |
| Max. Working Slope (Lateral/Vertical) | 1.5°/3° |
| Control | Proportional Control |
| Drive | Front Wheels |
| Brake | Rear Wheels |
| Tire | ф381mm×127mm |
| Battery | 4×6V/220Ah(HOPPECKE) 4×6V/210Ah( QUIMO) |
| Charger | 24V/30A |
| Charger (Option) | - |
| Gross | 2900kg |
Proportional controls
All motion alarm
Fold-down handrails
Flashing beacon
Self-closing entry gate
Emergency descent system
Active pothole protection system
Hour meter
Forklift pockets
Horn
AC power to platform
Drivable at full height
Scissor maintenance prop
Charging protection system
Extension deck (unidirectional)
Autobrake system
On-board diagnostic
Emergency stop button
Over tilt protective system
Maintenance-free battery
Load sensing system
Airline to platform
Platform work lights
Overhead protection bar
