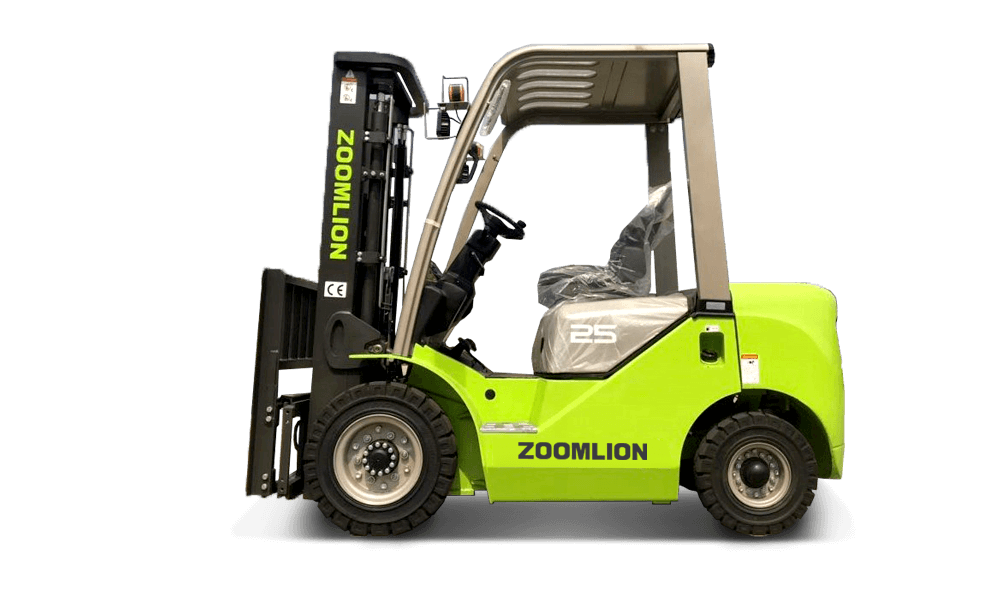

FD25H INTERNAL COMBUSTION FORKLIFT
Combine Isuzu C240/4JG2, Mitsubishi S4S diesel engine and Nissan K25 gasoline engine with automatic transmission design, operator has got a powertrain that delivers strong load handling and smooth acceleration.
LED Display offers useful information, such as the fuel meter, water temperature indicator and hour meters. USB charger and power outlet are special designed for the convenience of operator.
-
Japanese Kubota engine has passed EPA certification and is widely used in European and American markets.
-
Exquisite operating platform and integrated LED display can display all driving information and provide maximum comfort.
-
The mast is designed with large channel steel, with firm structure and strong bearing capacity. The front twin cylinder mast is optional for better visibility.
| Rated capacity | 2500Kg |
| Load centre | 500mm |
| Lifting height | 3000mm |
| Free lifting height | 135mm |
| Tilting angle | 6°/12° |
| Turning radius | 2240mm |
| Front overhang | 473mm |
| Tread | 430mm |
| Wheelbase | 1600mm |
| Fork spread(Min./Max.) | - |
| Working aisle width with pallet(Ast) | - |
| Service weight | - |
| Operating pressure for attachment | 17.5MPa |
| Travel (Laden) | 18Km/h |
| Travel(Unladen) | 19Km/h |
| Lifting(Laden) | 400mm/s |
| Lifting(Unladen) | 430mm/s |
| Lowering (Laden) | ＜600mm/s |
| Lowering(Unladen) | ≥300mm/s |
| Laden | 0.2 |
| Unladen | - |
| Driven motor | - |
| Pump motor | - |
| Battery | 90Ah/12V |
| Controller | - |
| Rear Wheel | 7.00-12-12PR |
| Front Wheel | 6.00-9-10PR |
| Overall Dimension(L×H×W) | 2570×2090×1160 |
| Weight | 3800 |
