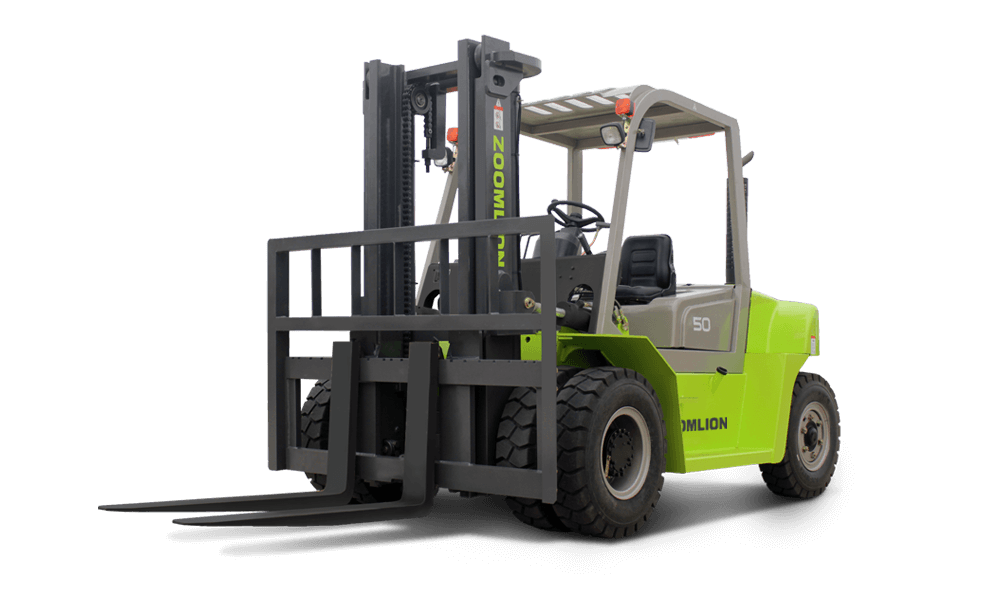

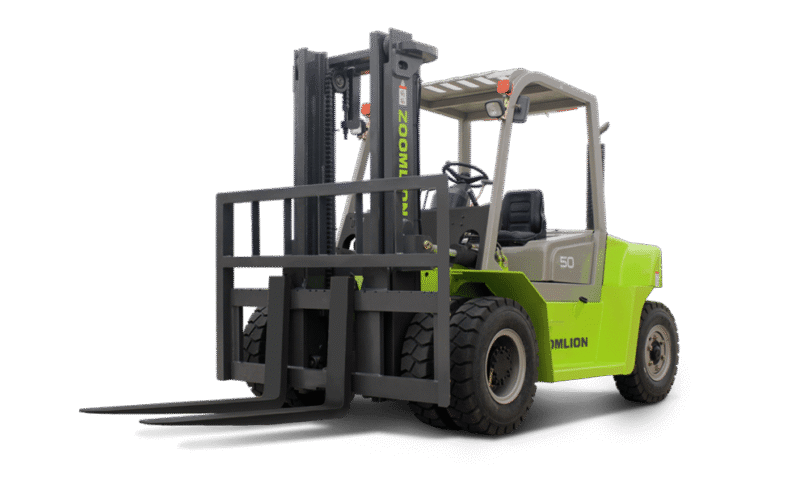

FD50Z INTERNAL COMBUSTION FORKLIFT
Reinforced mast with wide view design improves efficiency and safety;
Engine is with large torque and capacity, which is powerful and can meet different operation demands;
Lifting system is equipped with up and down buffer cylinders, which reduce shock and vibration efficiently;
Hydraulic system is equipped with the throttling valve, which makes operation safe and reliable.
-
It can be equipped with Japanese engine, with strong power and low failure rate.
-
Spacious driving space. USB cigarette lighter and charging port are optional for outdoor
-
operation. Conical design is adopted for pipe joints to prevent oil leakage.
| Rated capacity | 5000Kg |
| Load centre | 600 |
| Lifting height | 3000 |
| Free lifting height | 203 |
| Tilting angle | 6°/12° |
| Turning radius | 3415 |
| Front overhang | 610 |
| Tread | 335 |
| Wheelbase | 2340 |
| Fork spread(Min./Max.) | - |
| Working aisle width with pallet(Ast) | - |
| Service weight | - |
| Operating pressure for attachment | 20MPa |
| Travel (Laden) | 26 |
| Travel(Unladen) | 30 |
| Lifting(Laden) | 460 |
| Lifting(Unladen) | 485 |
| Lowering (Laden) | 450 |
| Lowering(Unladen) | 400 |
| Laden | 0.2 |
| Unladen | 0.2 |
| Driven motor | - |
| Pump motor | - |
| Battery | (12/90)X2 |
| Controller | - |
| Rear Wheel | 8.25-15-14PR |
| Front Wheel | 8.25-15-14PR |
| Overall Dimension(L×H×W) | 3516×2000×2500 |
| Weight | 7980 |
相关产品
-
FD15Z INTERNAL COMBUSTION FORKLIFT
Well-designed pipe and joint,which adapt each other and makes the hydraulic system stable and machine durable.
The overhead guard is made by press welding,with 5 transparent plastic cover to make sure rainproof and good view.
In the hydraulic pipeline, the rubber tube and the joint adopt the conical surface seal form, the sealing effect is good, the long-term use will not seep the oil.
Min. Turning Radius : 2060mmMax. Lifting Speed(loaded/empty) : 460/500mm/sMax. Lifting Height : 7000mm -

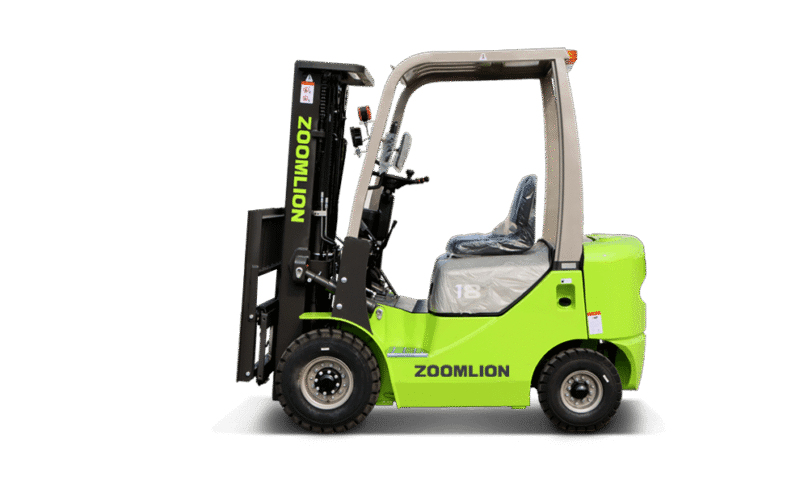

FD18Z INTERNAL COMBUSTION FORKLIFT
Well-designed pipe and joint,which adapt each other and makes the hydraulic system stable and machine durable.
The overhead guard is made by press welding,with 5 transparent plastic cover to make sure rainproof and good view.
In the hydraulic pipeline, the rubber tube and the joint adopt the conical surface seal form, the sealing effect is good, the long-term use will not seep the oil.
Rated Capacity : 1500-1800kgMax. Lifting Height : 7000mmMax. Lifting Speed(loaded/empty) : 460/500mm/s -

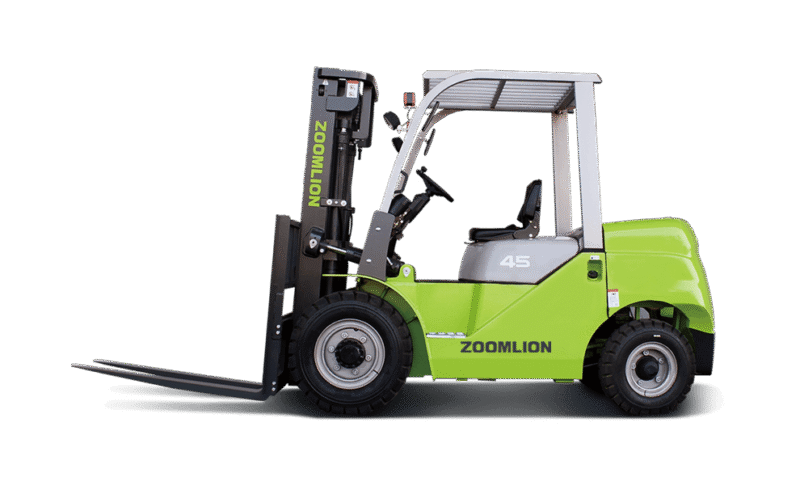

FD45mini INTERNAL COMBUSTION FORKLIFT
