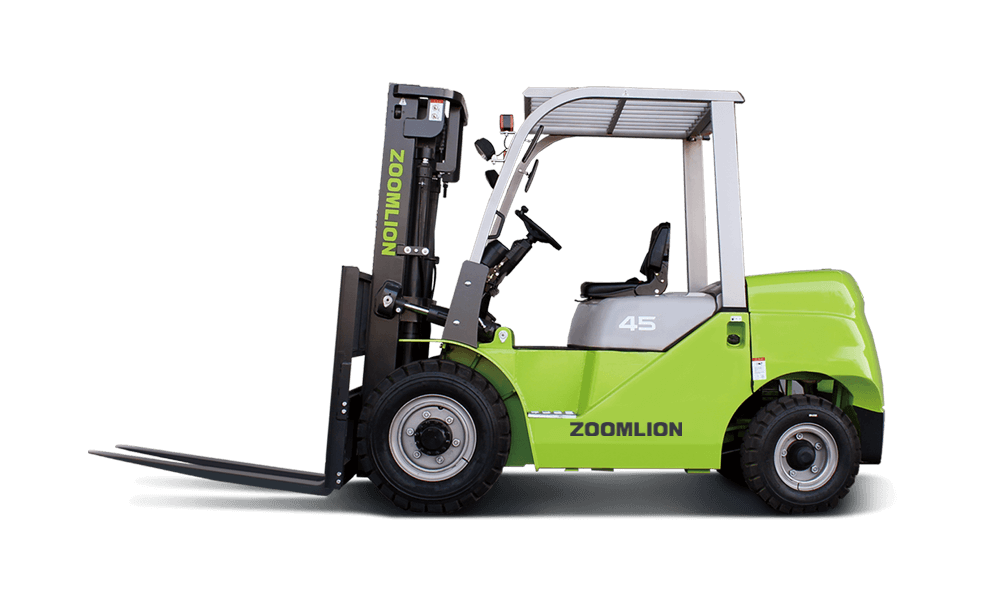

FD45mini INTERNAL COMBUSTION FORKLIFT

Reinforced mast with wide view design improves efficiency and safety;

Engine is with large torque and capacity, which is powerful and can meet different operation demands;

Lifting system is equipped with up and down buffer cylinders, which reduce shock and vibration efficiently;

Hydraulic system is equipped with the throttling valve, which makes operation safe and reliable.

2240-2445mmMin. Turning Radius

470/520mm/sMax. Lifting Speed(loaded/empty)

7000mmMax. Lifting Height

SKU： FD45mini 分类： All Machinery, Forklift, Zoomlion 标签： zoomlionmachine 品牌： Zoomlion

Advantage introduction

It can be equipped with Japanese engine, with strong power and low failure rate.
Spacious driving space. The mast is designed with large channel steel, with firm structure and strong bearing capacity. The front twin cylinder mast is optional for better visibility.
Conical design is adopted for pipe joints to prevent oil leakage.

Performance

Speed

Gradeability

Power

Size

Rated capacity	4500Kg
Load centre	500mm
Lifting height	3000mm
Free lifting height	140mm
Tilting angle	6°/12°
Turning radius	2760mm
Front overhang	570mm
Tread	530mm
Wheelbase	2000mm
Fork spread(Min./Max.)	-
Working aisle width with pallet(Ast)	-
Service weight	-
Operating pressure for attachment	20MPa

Laden	0.2
Unladen	-
