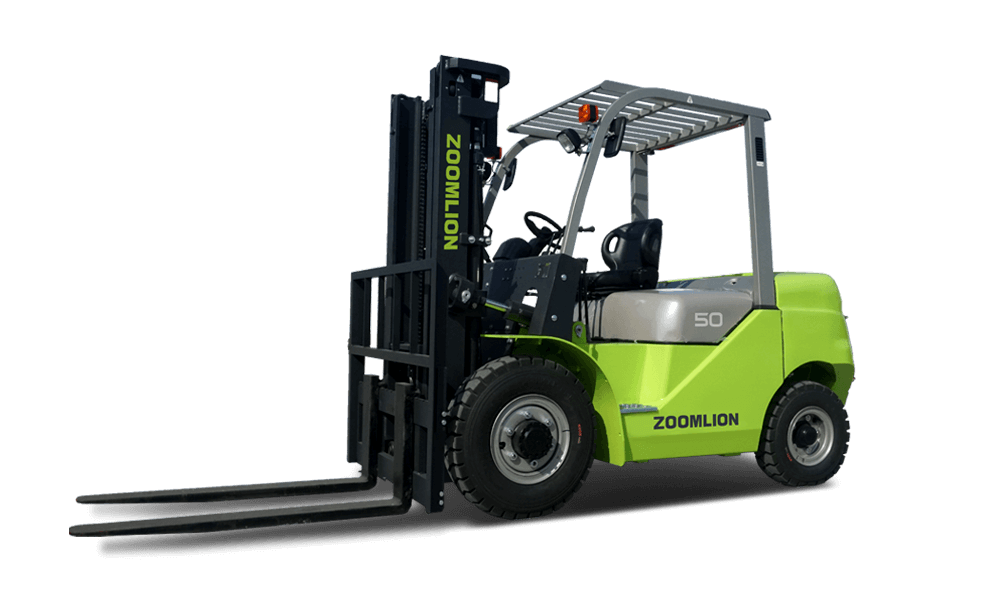

FD50mini INTERNAL COMBUSTION FORKLIFT
Reinforced mast with wide view design improves efficiency and safety;
Engine is with large torque and capacity, which is powerful and can meet different operation demands;
Lifting system is equipped with up and down buffer cylinders, which reduce shock and vibration efficiently;
Hydraulic system is equipped with the throttling valve, which makes operation safe and reliable.
-
It can be equipped with Japanese engine, with strong power and low failure rate.
-
Spacious driving space. The mast is designed with large channel steel, with firm structure and strong bearing capacity. The front twin cylinder mast is optional for better visibility.
-
Conical design is adopted for pipe joints to prevent oil leakage.
| Rated capacity | 5000 |
| Load centre | 500mm |
| Lifting height | 3000mm |
| Free lifting height | 140mm |
| Tilting angle | 6°/12° |
| Turning radius | 2760mm |
| Front overhang | 570mm |
| Tread | 530mm |
| Wheelbase | 2000mm |
| Fork spread(Min./Max.) | - |
| Working aisle width with pallet(Ast) | - |
| Service weight | - |
| Operating pressure for attachment | 20MPa |
| Travel (Laden) | 18Km/h |
| Travel(Unladen) | 19Km/h |
| Lifting(Laden) | 410mm/s |
| Lifting(Unladen) | 430mm/s |
| Lowering (Laden) | ＜600mm/s |
| Lowering(Unladen) | ≥300mm/s |
| Laden | 0.2 |
| Unladen | - |
| Driven motor | - |
| Pump motor | - |
| Battery | 90Ah/24V |
| Controller | - |
| Rear Wheel | 300-15-18PR |
| Front Wheel | 7.00-12-12PR |
| Overall Dimension(L×H×W) | 3100x2350x1490 |
| Weight | 6600 |
