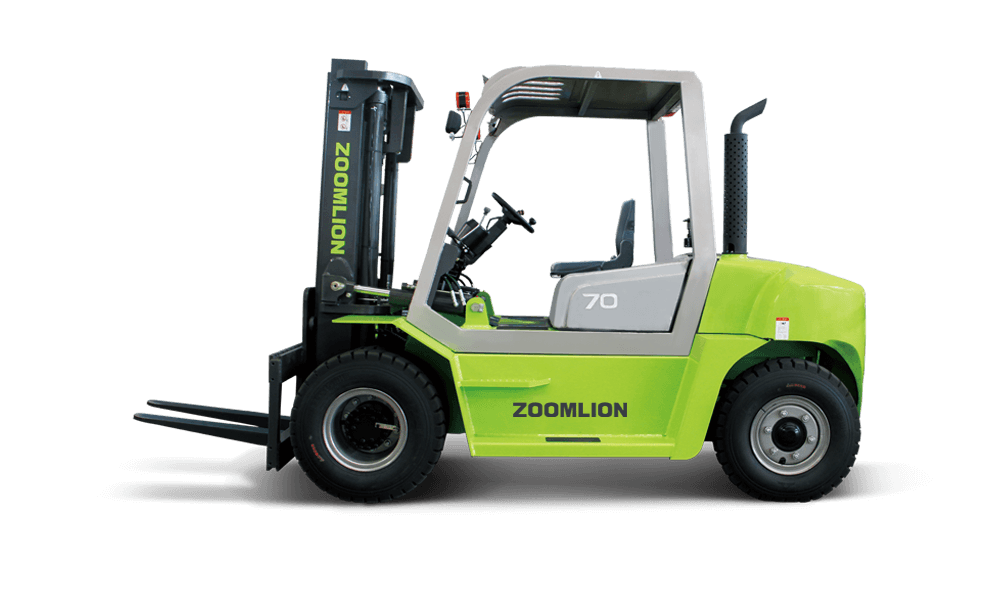

FD70Z INTERNAL COMBUSTION FORKLIFT
Reinforced mast with wide view design improves efficiency and safety;
Engine is with large torque and capacity, which is powerful and can meet different operation demands;
Lifting system is equipped with up and down buffer cylinders, which reduce shock and vibration efficiently;
Hydraulic system is equipped with the throttling valve, which makes operation safe and reliable.
-
It can be equipped with Japanese engine, with strong power and low failure rate.
-
Spacious driving space. USB cigarette lighter and charging port are optional for outdoor operation.
-
Conical design is adopted for pipe joints to prevent oil leakage.
| Rated capacity | 7000Kg |
| Load centre | 600 |
| Lifting height | 3000 |
| Free lifting height | 218 |
| Tilting angle | 6°/12° |
| Turning radius | 3507 |
| Front overhang | 625 |
| Tread | 335 |
| Wheelbase | 2340 |
| Fork spread(Min./Max.) | - |
| Working aisle width with pallet(Ast) | - |
| Service weight | - |
| Operating pressure for attachment | 20MPa |
| Travel (Laden) | 26 |
| Travel(Unladen) | 30 |
| Lifting(Laden) | 460 |
| Lifting(Unladen) | 485 |
| Lowering (Laden) | 450 |
| Lowering(Unladen) | 400 |
| Laden | 0.2 |
| Unladen | 0.2 |
| Driven motor | - |
| Pump motor | - |
| Battery | - |
| Controller | - |
| Rear Wheel | 8.25-15-14PR |
| Front Wheel | 8.25-15-14PR |
| Overall Dimension(L×H×W) | 3557×2000×2500 |
| Weight | 9340 |
