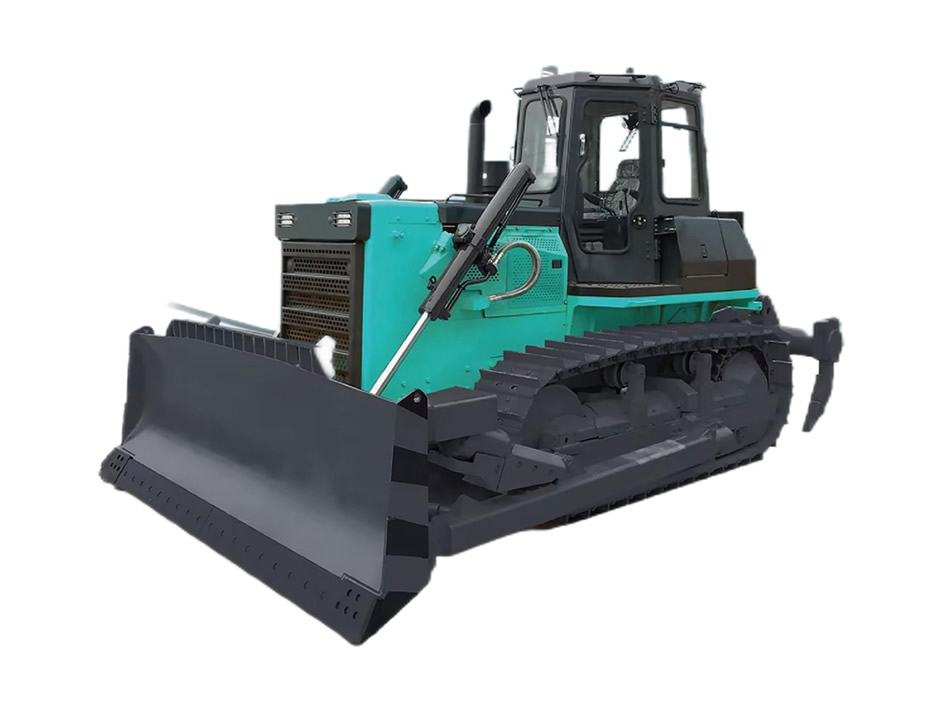

SD160Y-3

Technical Parameters

• Engine
  Model

  WEICHAIWD10G178E25

  Type

  Four-stroke, watercooling, straightvertical, direct injection type

  Rated power

  131kW

  Max. torqueRated Speed

  830N.m1100rpm

  Number of cylinders -bore×stroke

  6-φ126×130mm

  Starting method

  Startingmotor24V, 7.5kW

  Battery

  24V(12V×2)-195Ah

  Aircleaner

  Dry type, precleaned cyclone air cleaner

  Min fuel consemption ratio

  214g/kw-h

• Transmission System
  Torque converter

  3-element, single-stage, single-phase

  Transmission

  Hand-operated, Hydraulic shift, Planetary gear, multiple disc clutch, forced lubrication by gear pump

  Bevel gear

  Helical bevel gear, Splash lubricated

  Steering clutch

  Wet, Multiple disc, Spring loaded, Hand-operated with booster and hydraulic-released

  Steering brake

  Wet, band brake, operated with hydraulic booster

  Final drive

  double reduction, splash lubricated

  Grade ability

  30°

• Under Carrlage
  Sprocket

  Segmented

  Number of track rollers(each side)

  6/7

  Track tension

  Hydraulic-adjusted

  Sprockets、 Track rollers、 Carrier rollers、 Front idlers

  Floating seals

• Travel Speed(Km/H)
  Forward

  3.3/5.8/9.6

  Reverse

  4.3/7.6/12.5

• Hydraulic System 0f Work Equipment
  Working pressure

  14Mpa

  Rated flow rate(2000r/min)

  243L/min

  Pump

  Gearpump

  Control valve

  Hand-operated

• Work Equipment
  Blade type

  Straight tilt blade

  Width

  3440mm

  Height

  1135mm

  Max.drop below ground

  540mm

  Max.Tilt

  400mm

  Blade capacity

  4.5m³

• Track
  Type

  Sealed single grouser

  Track pitch

  203.2mm

  Track width

  510mm

  Number of track shoes(each side)

  37

  Length of track on ground

  2430mm

  Ground clearance

  405mm

  Track gauge

  1880mm

• Rippero
  Max.dig below ground

  3 SHANK RIPPER

  Max.dig below ground

  572mm

  Max.lift above ground

  592mm

  Weight

  1667kg
