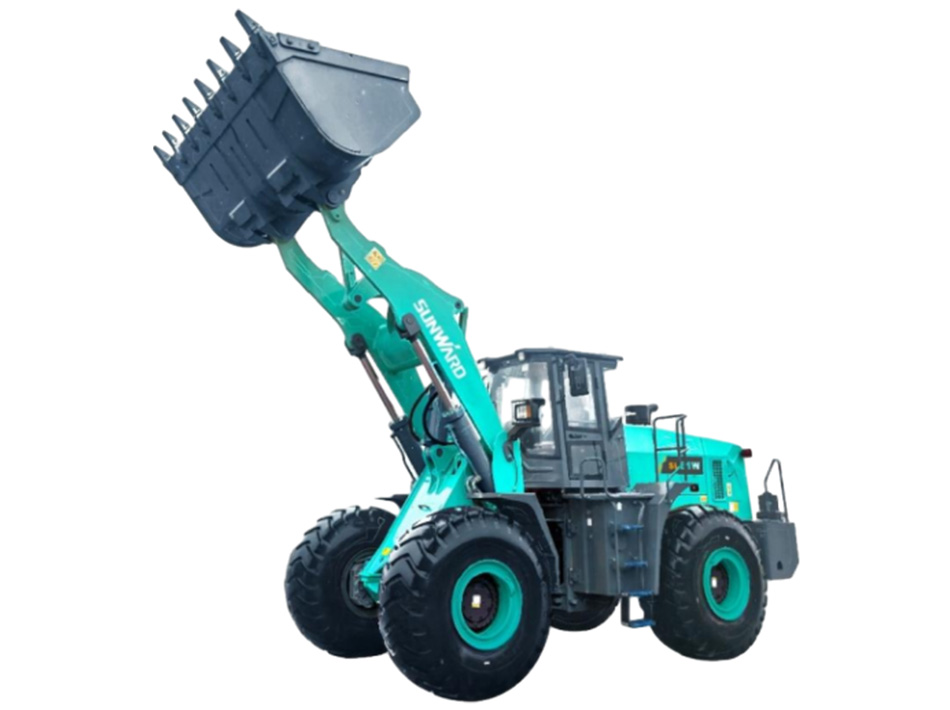

SL61W

Technical Parameters

• Overall machine parameters
  L*W*H

  8700*3050*3510 mm

  Standard bucket capacity

  3.5 m³

  Digging force

  ≥200 KN

  Drawbar pull

  200±5 KN

  Rated load capacity

  6000 kg

  Operating weight

  21700±300 kg

• Parameter
  Dumping type

  Standard

  Height(during bucket at the maximum lift position)

  6129 mm

  Height of the lower pin of the boom from the ground

  4709 mm

  Dump height-45°dump angle

  3580 mm

  Dump reach-45°dump angle

  1227 mm

  Bukcet angle-trasport position

  48.6 °

  Bukcet angle-off-ground position

  46.2 °

  Digging depth

  69 mm

  Bucket angle-Max.lift position

  50.4 °

  Bucket dump height

  45 °

  Transport height

  400 mm

  Min.ground clearance

  512 mm

  Front axle-hinge dimension of front and rear vehicle frame

  1700 mm

  Wheel base

  3400 mm

  Overall length

  8700 mm

  Max.gradeability

  30 °

  Overall height

  3510 mm

  Overall width-Bukcet

  3050 mm

  Min.turning radius-Bukcet

  7594 mm

  Min.turning radius-Outside of tyre

  6500 mm

  Steering angle(R/L)

  35 °

  Wheel thread

  2270 mm

  Distance of tyre outside

  2945 mm

• Engine
  Manufacturer/model

  WP10G240E341

  Emission standard

  China Ⅲ

  Rated power/speed

  178/2200 KW/rpm

  Max.torque/speed

  1200/1400-1600 N.m/rpm

  Number of cylinders/Displacement

  6/9.726 L

  Generator

  70 Amp

  Battery

  2-24V/120 Ah

  Starting motor

  24 V

• Transmission system
  Gearbox form

  Planetary box

  Gear shift form

  Planetary power gear shift

  Gearbox pressure

  1.1-1.5 Mpa

  Torque convertor form

  Single level,Two turbins，Four elements

  Drive axle

  Dry-type axle

  Rear axle Swing angle

  ±10°

  Main reduction

  Sprial bevel gear,One-level reduction

  Hub reduction

  Planetary transmission reduction

  Tyre specification

  26.5-25-24PR TT

  Travel speed-forwards

  14/38

  Travel speed-backwards

  19.5

• Brake system
  Travel brake

  Single pipe line four wheel clamp disc brake

  Air pressure

  0.7-0.78MPa MPa

  Parking brake

  Air-controlled clamp disc brake

  Emergency brake

  Air-controlled clamp disc brake

• Steering syetem
  Form

  Full hydraulic load sensor steering

  Gear pump

  176/2200 L/min,prm

  System pressure

  16 Mpa

  Steering cylinder form

  Two-cylinder drive

  Steering angle

  ±35°

• Work hydrauilc system
  Form

  Single handle pilot control

  Flow

  275L/min.2200prm

  Distribution valve

  2-linkage valve

  System pressure

  18 Mpa

  Sum of the three items

  ≤10.8 s

• Oil tank capacity
  Fuel

  330 L

  Hydraulic oil

  270 L

  Engine oil

  19 L

  Gearbox oil

  63 L

  Front bridge/Rear bridge

  62 L

• Standard configuration
  China Ⅲ

  Lonking gearbox

  Flexible shaft control gear shift

  Longking dry-type drive axle

  Mechanical flexible shaft operation control

  Air-controlled clamp disc brake

  ROPS&FOPS

  Detachable cab

  Combination instrument

  Cold&Warm aircon
• Optional configuration
  Cold start

  Pilot operation control

  Standard boomStandard boom

  Oil-bath air filter

  Tyre 750/65R25

  The third linkage piping

  Alarm light

  Slide window of cab

  Reverse image

  Fan heater

  Radio/MP3

  Log grapple fork（Single upper,double lower）

  Log grapple fork（double upper and lower）

  Log grapple fork（Single upper,double lower）

  Electric-heating rear window

  Lockable oil tank cap

  Rock bucket

  5.6m³Coal bucket

  Normal detachable cab
