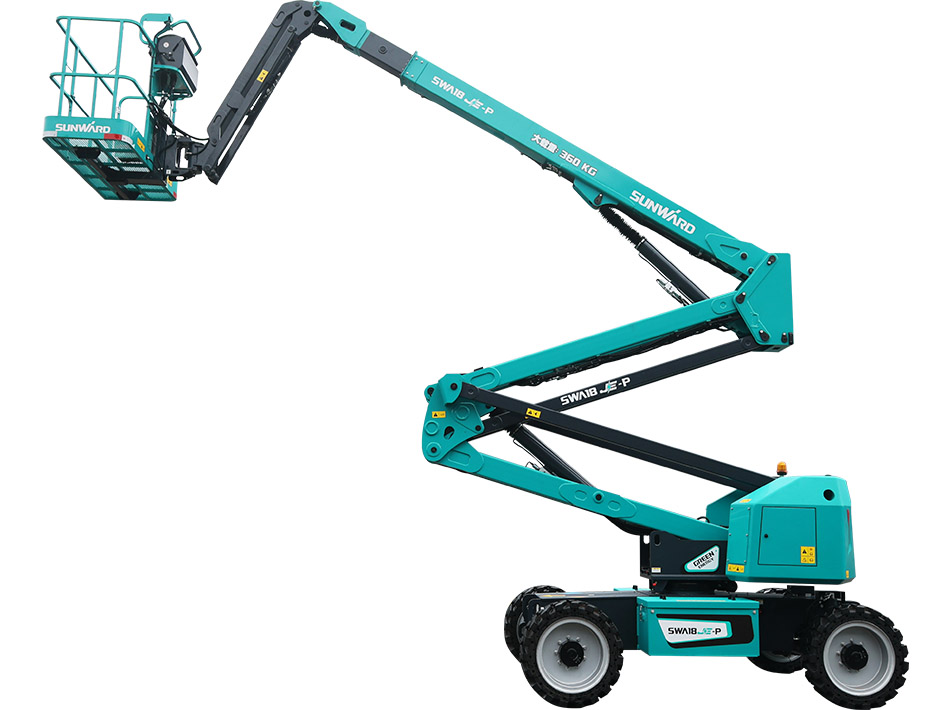

SWA18JE-P
* The working height equals to the platform height plus 2 m.
* The gradeability is adaptive to driving on slopes; refer to the OperationManual for relevant levels of gradeability
Technical Parameters
-
Overall machine parametersMax.operating height
18m
Maximum Platform Height16m
Max.platform range9m
Max.operating range9.6m
Max.up and over clearance7.8m
Length – Stored7.5m
Length – Transport5.95m
Height – Stored2.24m
Wheelbase2.36m
Overall Vehicle Width2.3m
Ground Clearance – Middle0.37m
Operating platform dimension1.83×0.76m
Rated load260/360kg
Max.number of people2
Platform rotation180°
Turtable rotation360°
Turntable tail swing0.3m
Max.travel speed-storage5.8km/h
Max.travel speed-lifting0.8km/h
Turning radius internal/external2.06/4.74m
Max.gradeability(counterweight upwards)40%
Max..gradeability(counterweight downwards)45%
Max.allowable operation angle of chassis5°
Power source51.2/320V/Ah
Engine power and speed—V/Ah
Drive motorAC-32/3.3V/kW
Hydrauilc oil tank capacity60L
Fuel tank capacity—L
Tyre33×12-20
Overall weight8270kg
