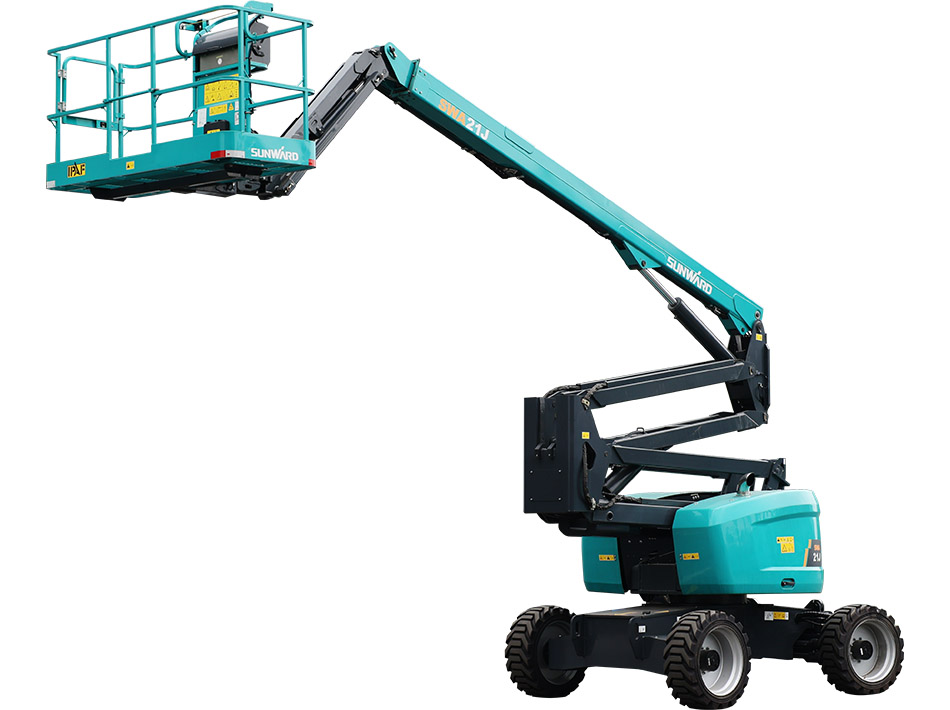

SWA21J-T4
* The working height equals to the platform height plus 2 m.
* The gradeability is adaptive to driving on slopes; refer to the OperationManual for relevant levels of gradeability
Technical Parameters
-
Overall machine parametersMax.operating height
21m
Maximum Platform Height19m
Length – Stored9.11m
Length – Transport7.1m
Height – Stored2.49m
Wheelbase2.52m
Overall Vehicle Width2.49m
Ground Clearance – Middle0.36m
Operating platform dimension2.44×0.91m
Rated load250kg
Max.number of people2
Platform rotation160°
Turtable rotation360°
Turntable tail swing0m
Max.travel speed-storage5.8km/h
Max.travel speed-lifting1.1km/h
Turning radius internal/external2.4/5.4m
Max.gradeability(counterweight upwards)45%
Max..gradeability(counterweight downwards)40%
Max.allowable operation angle of work5°
Power sourceKubota v2403
Engine power and speed36.4kW@2600rpm
Auxiliary power unit12V
Hydrauilc oil tank capacity110L
Fuel tank capacity110L
Tire355/55D625
Overall weight11370kg
