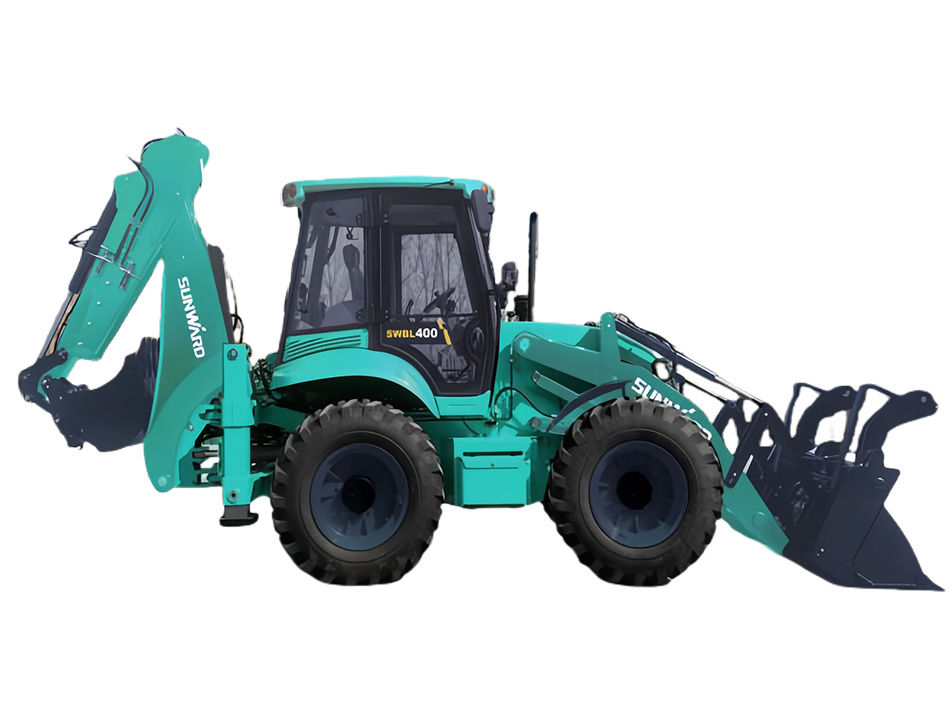

SWBL400
Operating weight: 10800KG
Load bucket capacity: 1.2m³
Backhoe bucket capacity: 0.3m³
Technical Parameters
-
Overall dimensionsOperating weight
10800KG
Overall dimension(L×W×H)6480×2543×3627mm
Wheel base2293±10mm
Wheel tread2050±10mm
Ground clearance420mm
-
PerformanceLoad bucket capacity
1.2m³
Load breakout force47KN
Load lifting capacity2500KG
Bucket unloading height3153
Bucket unloading distance989±20mm
Digging depth30mm
Backhoe bucket capacity0.3m³
Backhoe digging force49.8KN
Backhoe swing angle180°
Bucket unloading height3986/4726mm
Max.Digging depth3230/4180mm
Max.Traction force91KN
-
EngineModel
YuchaiYC4A110Z-T23
TypeInline,direct injection,water-cooled,turbocharged,four-stroke
Cylinders-Inner diameter×stroke4-108×132
Rated power81KW
Rated speed2200r/min
Min.fuel consumption230g/kw.h
Max.torque425N.m
Displacement4.8L
-
System pressureLoading hydraulic system
20Mpa
Excavation hydraulic system20Mpa
Steering hydraulic system16MPa
-
Steering systemType
hydraulic steering
Steering gear modelBZZ-250
Pump displacement85ml/r
Pump modelHP5V85
Steering angle±36°
Min.Turning radius6950mm
-
Driving axleModel
26.32-190026.43M-1900
Rated front axle load25T
Rated rear axle load18.75T
-
Transmission systemModel
TCB80 SPS 4WD 4WS
Gears4F、4R
Cooling modePressure oil circulation
-
TyresFront/Rear model
16.9-28
Front tyre pressure0.35Mpa
Rear tyre pressure0.35Mpa
Max.travel speed38Km/h
-
Brake systemTraveling brake
Wet internal self-regulatic self-balance type
Parking brakeManual brake
