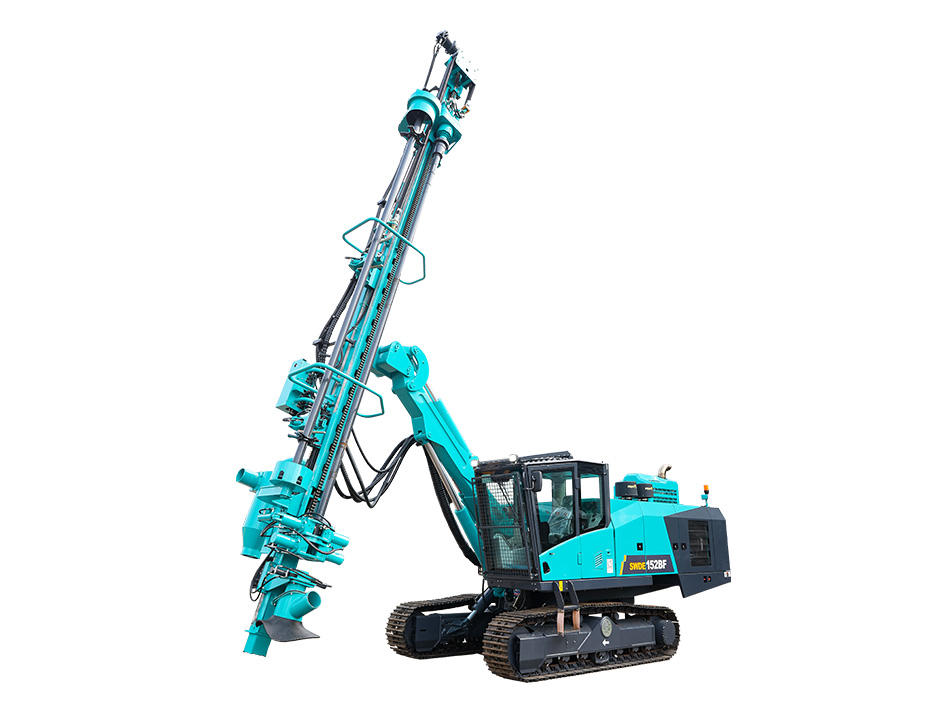

SWDE152B

Technical Parameters

• Main parameters
  Hole diameter

  138-165 mm

  DTH hammer

  5 、6″

  Tube diameter

  102 mm

  Tube length

  6m×6 m

  Maximum hole depth

  36 m

  Dust collector

  Dry(standard)Water mist(optional)

• Air compressor
  Working pressure

  21 bar

  FAD

  20.5 m³/min

• Engine
  Moadel

  QSL8.9-C360-30

  Power rating

  264/2100 kW/rpm

  Fuel tank volume

  730 L

• Feed system
  Total length

  10520 mm

  Feed extension

  1300 mm

  Feed force

  45 kN

  Pitch angle

  140 °

  Turning angle

  -20~90 °

• Drill boom
  Lifting angle

  50~-30 °

  Swing angle

  L15 R45 °

• Carrier
  Tramming speed

  3.2 km/h

  Traction force

  180 kN

  Gradeability

  25 °

  Track oscillation

  ±10 °

  Ground clearance

  480 mm

• Rotary head
  Rotation speed

  0-150 rpm

  Torque

  5000 Nm

• Dimension
  Weight

  22500 kg

  LxWxH（ Work ）

  9.2×2.7×10.6 m

  LxWxH（ Transportation ）

  12.2×2.7×3.8 m
