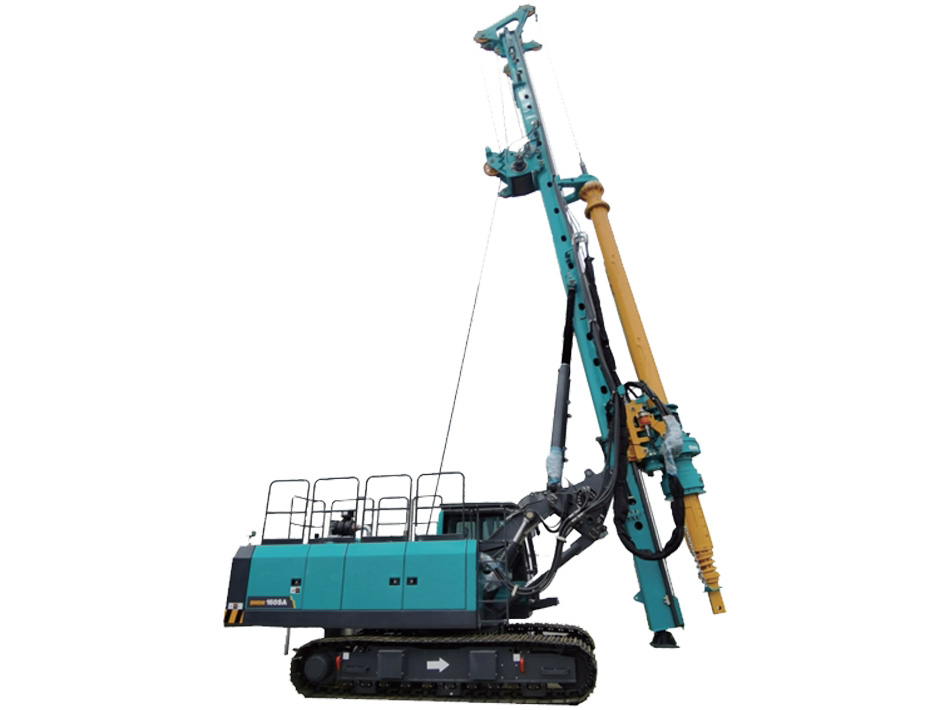

SWDM160W

Technical Parameters

• Drilling
  Max. diameter

  1200mm

  Max. depth

  56m/44m

• Engine
  Mode

  B6.7

  Rated Power

  194kW/2200rpm

• Rotary Head
  Max torque

  168kN.m

  Rotation Speed

  6~42rpm

• Main Winch
  Max. pulling force

  168kN

  Max .line speed

  80m/min

  Rope Diameter

  28mm

• Crowd System
  Max pull down force

  200kN

  Max pull up force

  200kN

  Max stroke

  11000mm

• Auxiliary Winch
  Max. pulling force

  50kN

  Max. Line Speed

  50m/min

  Rop diameter

  16mm

• Dril Mast
  Inclination(L/R)

  ±4°

  Inclination(F/R)

  4/90°

• Chassis
  Crawler Width

  700mm

  Crawler retractble width

  2980-3980mm

  Chassis Length

  4645mm

• Complete Machine
  Operation height

  18326mm

  Transportation width

  2980mm

  Operation weight

  48000kg

• Drill pipe parameters
  Interlocking kelly
  Friction Kelly Bar

  JS377-4X12.1m

  Hole depth (m)

  44

  Drill pipe weight (kg)

  7300

  Friction kelly
  Interlocking Kelly Bar

  MZ377-5X12.1m

  Hole depth (m)

  56

  Drill pipe weight (kg)

  7400
