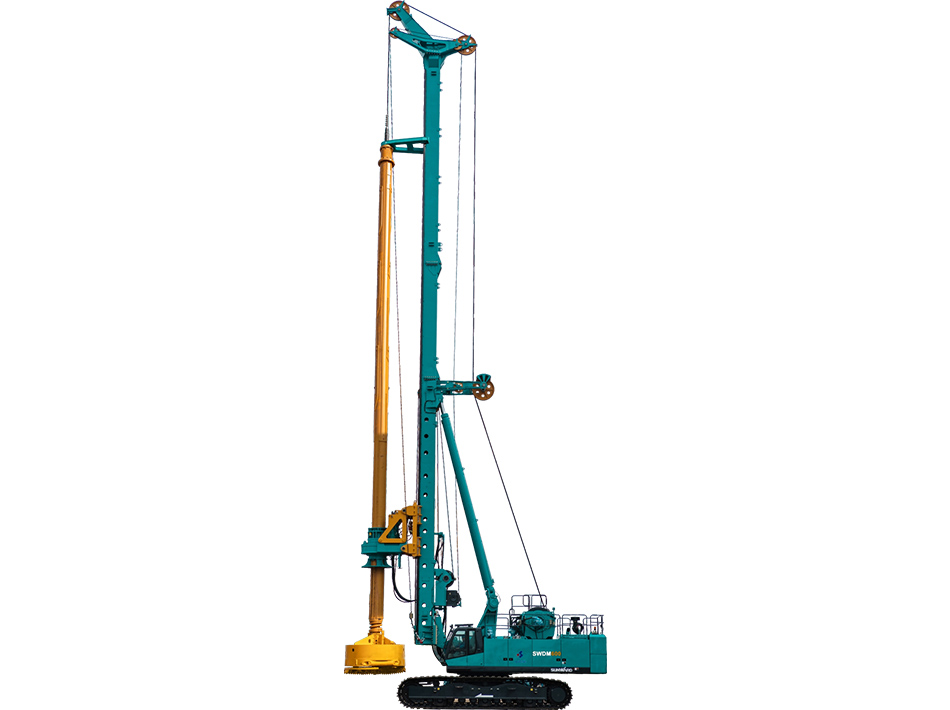

SWDM600

Technical Parameters

• Drilling
  Max.Drilling Diameter

  3500mm

  Max.Drilling depth

  145m/95m

• Engine
  Mode

  TAD1643VE-B

  Rated Power

  565kW/1900rpm

• Rotary
  Max. Torque

  600kN.m

  Speed of rotation

  6~32rpm

• Main Winch
  Max.line pull

  640kN

  Max.line speed

  65m/min

  Rop diameter

  46mm

• Crowd
  Max.pull down force

  480kN

  Max.pull up force

  500kN

  Max. Stroke

  10000mm

• Auxilliary Winch
  Max.pulling force

  110kN

  Max. Line Speed

  65m/min

  Rope Diameter

  24mm

• Dril Mast
  Inclination(L/R)

  p4°

  Inclination(L/R)

  15°/90°

• Chassis
  Crawler Width

  1000mm

  Crawler retractble width

  6000mm

  Chassis Length

  7650mm

• Drill pipe parameters
  Interlocking kelly
  Spec.

  JS630-4X24.5m/JS630-4X26m

  Drilling depth (m)

  88/95

  Wight (kg)

  31700/33500

  Friction kelly
  Spec.

  MZ630-6X24.5m/MZ630-6X26m

  Drilling depth (m)

  135/145

  Wight (kg)

  34400/36300
