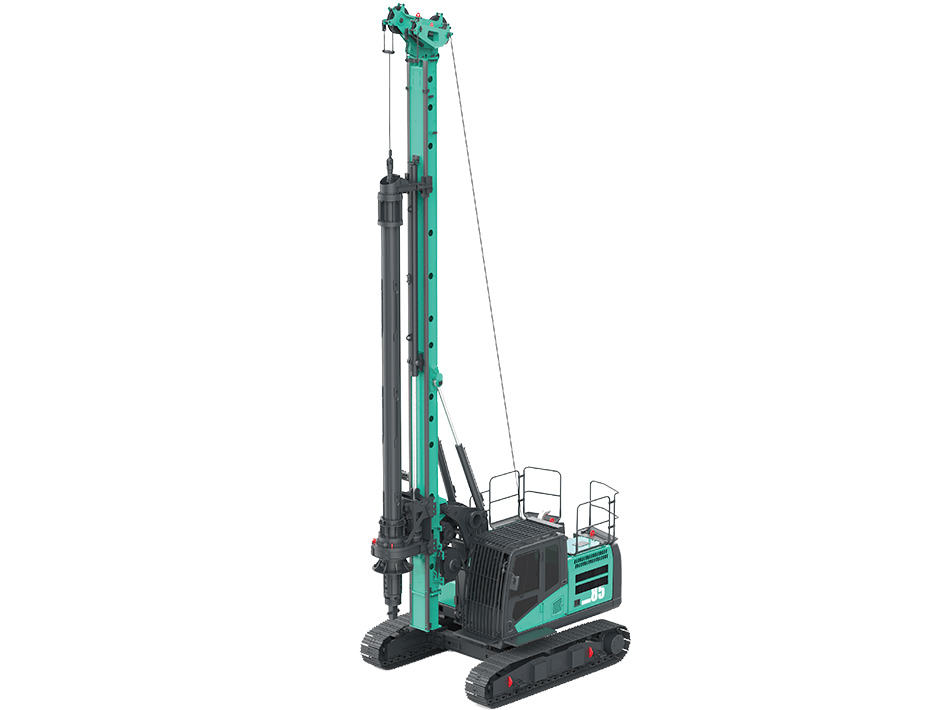

SWDM85

Technical Parameters

• Undercarriage
  Overall Width With Retracted Crawlers

  2500mm/8ft2in

  Overall Width With Extended Crawlers

  3400mm/11ft2in

  Width Of Triple Grouser Track Shoes

  500mm/1ft8in

  Overall Length Of Crawlers

  4070 mm/13ft4in

  Traction Force (Effective/Nominal)

  209/246 kN;46985/55303 lbf

  Travelling Speed

  1.3km/h/0.81mph

• Engine
  Engine Model

  CUMMINS F3.8

  Power Rating

  90 KW @2200 RPM/93 KW @ 2200 RPM

  Engine Emission

  Eu Stage V/Us Epa Tire 4f;Eu Stage III

  Fuel Tank Capacity

  310L

  Ad Blue Tank Capacity

  18.5L

• Hydraulic System
  Main Pumps Flow@1900 Rpm

  266 L/min

  Hydraulic Oil Tank Capacity

  320L

  Hydraulic Pressure

  320 bar/4640 psi

• Rotary Head
  Max.Nominal Torque

  80 kN.m/58921.68 lbf.ft

  Speed Of Rotation

  8-35 rpm

  Spin Off Speed

  60 rpm

  Weight

  1.6T/3527 lb

• Main Winch
  First Layer Line Pull (Effective)

  90 kN/398,107 lbf

  Line Speed (Max.)

  62m/min/2.3mph

  Rope Diameter

  20mm/0.8in

• Auxiliary Winch
  First Layer Line Pull (Effective)

  30 kN/66442 lbf

  Line Speed (Max.)

  50m/min/1.8 mph

  Rope Diameter

  13mm/0.5in

• Noise Emission
  Sound Pressure Level In Cabin-Stage V (En 16228, Annex B)

  LPA 80 db

  Sound Power Level (2000/14/Ec And En 16228, Annex B)

  LWA 106 db

• Cylinder Crowd System
  Stroke

  3500mm/11 ft 6 in

  Crowd Force Pull (Nominal)

  130 kN/605,000 lbf

  Crowd Force Push

  100 kN/224809 lbf

  Speed Up (Max.)

  26 m/min/1mph

  Speed Down (Max.)

  12m/min/0.4 mph

• Winch Crowd System
  Stroke

  7500mm/24 ft 6in

  Crowd Force Pull (Nominal)

  130 kN/605,000 lbf

  Crowd Force Push (Nominal)

  130 kN/605.000 lbf

  Speed Up (Max.)

  20m/min/12.4 mph

  Speed Down (Max.)

  20m/min/12.4 mph

  Rope Diameter

  13 mm/0.5 in
