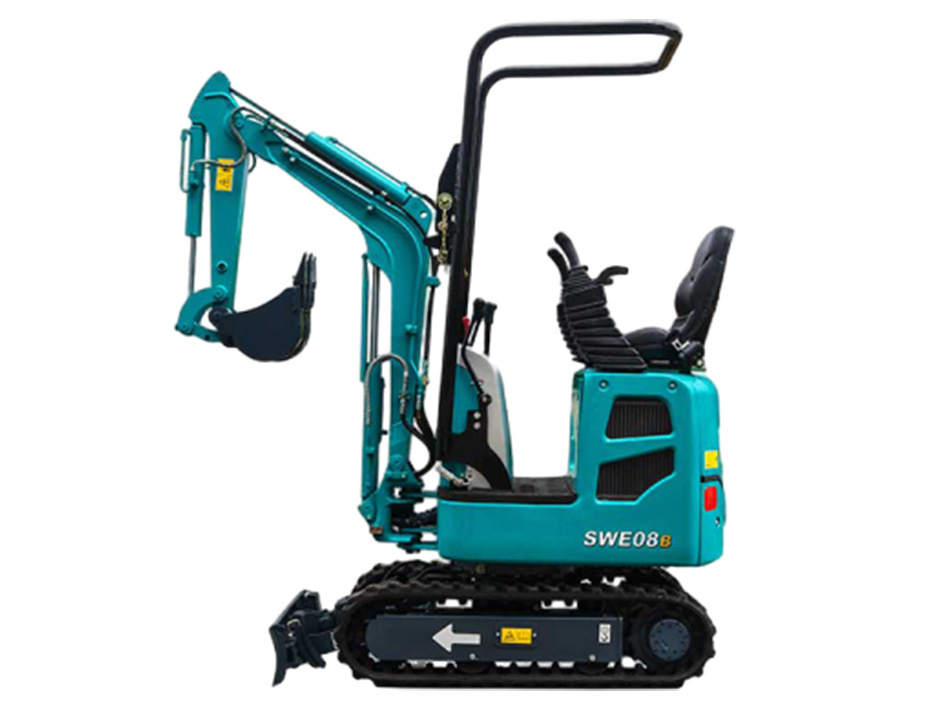

SWE08B

Technical Parameters

• Basic Parameter
  Operating Weight

  1010 kg

  Bucket Capacity

  0.022 m3

• Overall Dimension
  Operating weight

  2640 mm

  Overall Height

  2250 mm

  Overall Width

  750 mm

  Counterweight Clearance

  420 mm

  Ground Clearance

  130 mm

  Tail Swing Radius

  750 mm

  Length to Center of Rollers

  975 mm

  Track Length

  1300 mm

  Track Gauge

  570/820 mm

  Track Width

  750/1000 mm

  Track Shoe Width

  180 mm

  Max. Height of Cab

  2250 mm

  Uppercarriage Width

  740 mm

• Working Range
  Boom Length

  1350 mm

  Arm Length

  700 mm

  Max. Digging Height

  2505 mm

  Max. Dumping Height

  1770 mm

  Max. Digging Depth

  1450 mm

  Max. Depth Cut for 2440 mm Level Bottom

  – mm

  Max. Vertical Digging Depth

  1085 mm

  Max. Digging Reach

  2850 mm

  Max. Digging Reach at Ground Level

  2740 mm

  Min. Front Swing Radius

  1350 mm

  Max. Raising Height above Ground of Dozer Blade

  225 mm

  Max. Lowering Depth from Ground of Dozer Blade

  225 mm

• Performance
  Bucket Digging Force

  9.4 kN

  Arm Digging Force

  5.8 kN

  Tipping load

  2200 kg

  Max. Drawbar Pull

  8.3 kN

  Gradeability

  57 %

  Ground Pressure

  24.5 kPa

  Travel Speed(Max/Min)

  2.9/1.5 km/h

  Swing Speed

  8.2 rpm

• Oil Tank Capacity
  Fuel Tank Capacity

  10 L

  Hydraulic Tank Capacity

  9.5 L

• Engine
  Model

  2TNV70-PSU/Stage Ⅴ

  Rated Power

  7.2/2400 kw/rpm

  Max. Torque

  34.4/1800 N.m/rpm

  Displacement

  0.57 L

• Hydraulic System
  Main pump
  Type

  Quantitative gear pump

  Max.Flow

  9.6+9.6 L/min

  System Pressure

  16 MPa

  Pilot pump

  Type

  Quantitative gear pump

  Max.Flow

  9.6 L/min

  Pressure

  3.9 MPa

  Flow of Aux 1（break）

  19.2 L/min

  Flow of Aux 2

  – L/min
