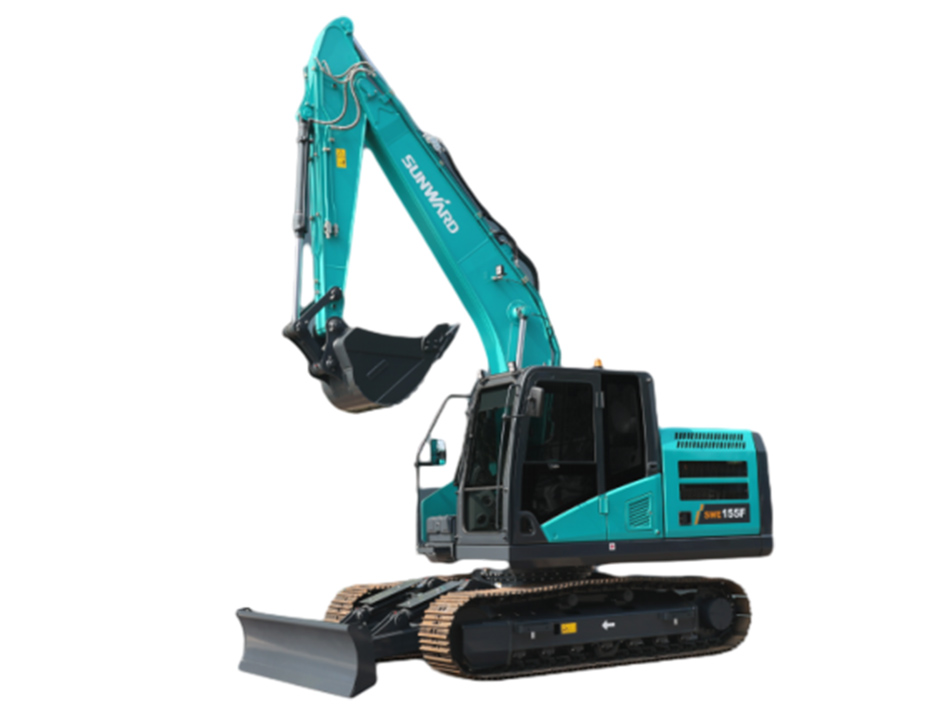

SWE155F(new)
Operating Weight: 14700kg
Bucket Capacity: 0.6m3
Technical Parameters
-
Basic ParameterOperating Weight
14700 kg
Bucket Capacity0.6 m3
-
Overall DimensionOverall Length
8270 mm
Overall Height2860 mm
Overall Width2490 mm
Counterweight Clearance940 mm
Ground Clearance410 mm
Tail Swing Radius2515 mm
Length to Center of Rollers2915 mm
Track Length3650 mm
Track Gauge1990 mm
Track Width2490 mm
Track Shoe Width500 mm
Max. Height of Cab2860 mm
Uppercarriage Width2490 mm
-
Working RangeBoom Length
4600 mm
Arm Length2500 mm
Max. Digging Height8600 mm
Max. Dumping Height6145 mm
Max. Digging Depth5530 mm
Max. Depth Cut for 2440 mm Level Bottom5320 mm
Max. Vertical Digging Depth4930 mm
Max. Digging Reach8330 mm
Max. Digging Reach at Ground Level8185 mm
Min. Front Swing Radius2575 mm
Max. Raising Height above Ground of Dozer Blade487 mm
Max. Lowering Depth from Ground of Dozer Blade650 mm
-
PerformanceBucket Digging Force
100 kN
Arm Digging Force76 kN
Max. Drawbar Pull115 kN
Gradeability70 %
Ground Pressure45.04 kPa
Travel Speed(Max/Min)5.7/3.5 km/h
Swing Speed11 rpm
-
Oil Tank CapacityFuel Tank Capacity
300 L
Hydraulic Tank Capacity185 L
-
EngineModel
F3.8
Rated Power90/2200 kw/rpm
Max. Torque500/1500 N.m/rpm
Displacement3.8 L
-
Hydraulic SystemMain pumpType
Variable plunger pump
Max.Flow2*165 L/min
System Pressure31.4/34.3 MPa
Pilot pumpTypeGear pump
Max.Flow22 L/min
Pressure3.9 MPa
Flow of Aux 1（break）142.5 L/min
Flow of Aux 236 L/min
