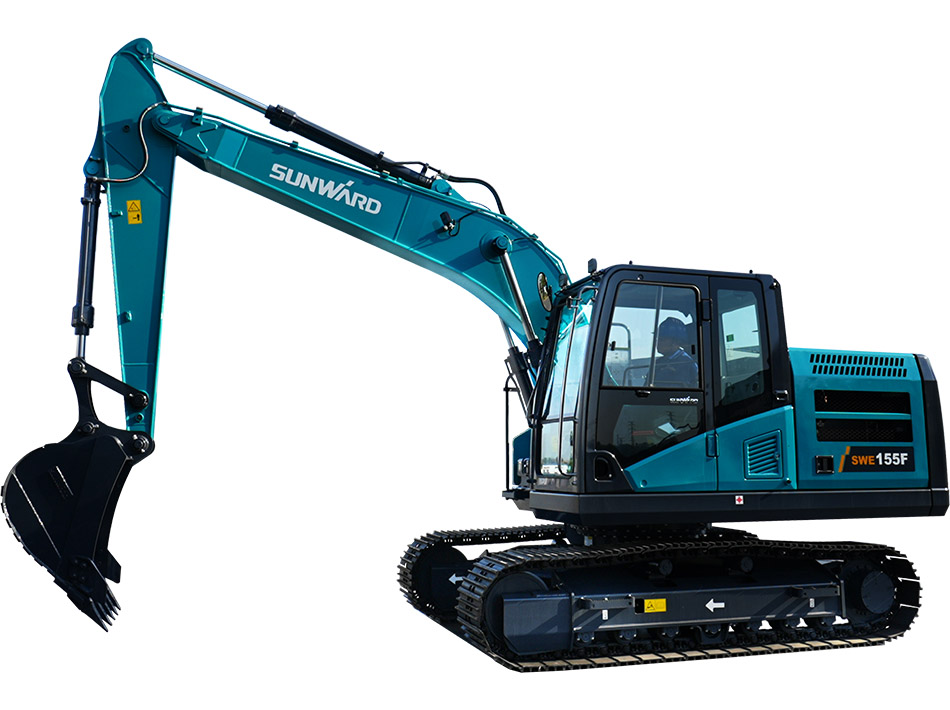

SWE155F(old)

Technical Parameters

• Basic Parameter
  Operating Weight

  15200/16100 kg

  Bucket Capacity

  0.6 m³

• Overall Dimension
  Overall Length

  7840/8210 mm

  Overall Height

  2850 mm

  Overall Width

  2490 mm

  Counterweight Clearance

  940 mm

  Ground Clearance

  410 mm

  Tail Swing Radius

  2515 mm

  Length to Center of Rollers

  2915/3000 mm

  Track Length

  3650/3760 mm

  Track Gauge

  1990/2000 mm

  Track Width

  2490/2600 mm

  Track Shoe Width

  500/600 mm

  Max. Height of Cab

  2850 mm

  Uppercarriage Width

  2490 mm

• Working Range
  Boom Length

  4600 mm

  Arm Length

  2500 mm

  Max. Digging Height

  8600 mm

  Max. Dumping Height

  6145 mm

  Max. Digging Depth

  5530 mm

  Max. Depth Cut for 2440 mm Level Bottom

  5320 mm

  Max. Vertical Digging Depth

  4930 mm

  Max. Digging Reach

  8330 mm

  Max. Digging Reach at Ground Level

  8185 mm

  Min. Front Swing Radius

  2575 mm

  Max. Raising Height above Ground of Dozer Blade

  532 mm

  Max. Lowering Depth from Ground of Dozer Blade

  628 mm

• Performance
  Bucket Digging Force

  100 kN

  Arm Digging Force

  76 kN

  Max. Drawbar Pull

  115 kN

  Gradeability

  70 %

  Ground Pressure

  46.6/48 kPa

  Travel Speed(Max/Min)

  5.5/3.2 km/h

  Swing Speed

  11 rpm

• Oil Tank Capacity
  Fuel Tank Capacity

  245 L

  Hydraulic Tank Capacity

  150 L

• Engine
  Model

  F3.8

  Rated Power

  90/2200 kw/rpm

  Max. Torque

  500/1500 N.m/rpm

  Displacement

  3.8 L

• Hydraulic System
  Main pump
  Type

  Variable plunger pump

  Max.Flow

  2*176 L/min

  System Pressure

  31.4/34.3 MPa

  Pilot pump

  Type

  Gear pump

  Max.Flow

  22 L/min

  Pressure

  3.9 MPa

  Flow of Aux 1（break）

  138.6 L/min

  Flow of Aux 2

  -L/min
