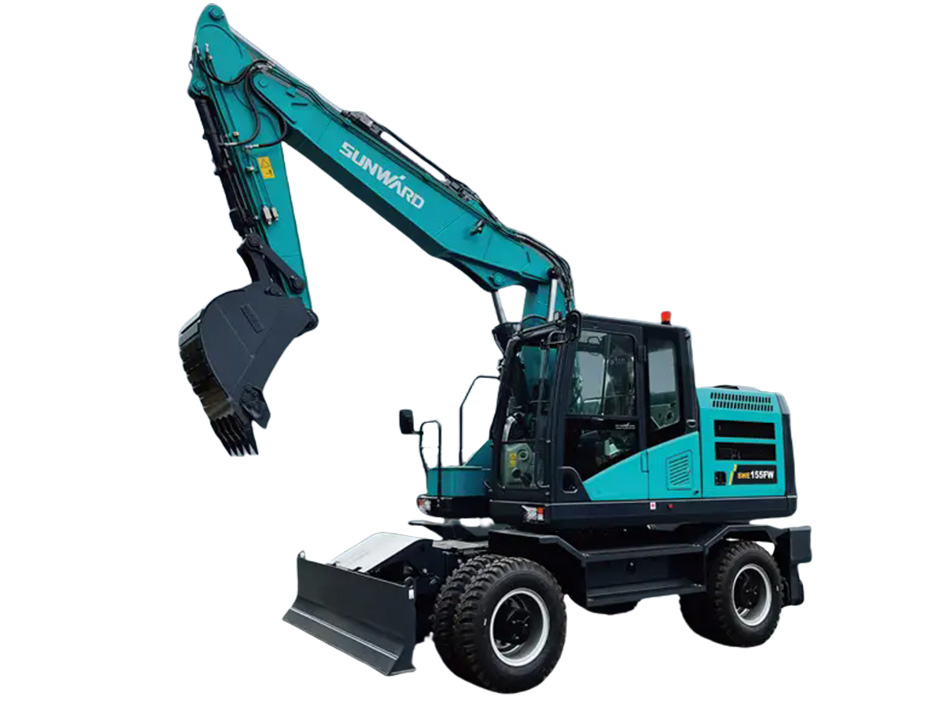

SWE155FW

Technical Parameters

• Basic Parameter
  Operating Weight

  14700/15400 kg

  Bucket Capacity

  0.6 m³

• Overall Dimension
  Overall Length

  8585 mm

  Overall Height

  3150 mm

  Overall Width

  2515 mm

  Counterweight Clearance

  1250 mm

  Ground Clearance

  365 mm

  Tail Swing Radius

  2515 mm

  Length to Center of Rollers

  2800 mm

  Track Length

  – mm

  Track Gauge

  1942 mm

  Track Width

  – mm

  Track Shoe Width

  – mm

  Max. Height of Cab

  3150 mm

  Uppercarriage Width

  2490 mm

• Working Range
  Boom Length

  4600+3340 mm

  Arm Length

  2100 mm

  Max. Digging Height

  9625 mm

  Max. Dumping Height

  7090 mm

  Max. Digging Depth

  5210 mm

  Max. Depth Cut for 2440 mm Level Bottom

  5100 mm

  Max. Vertical Digging Depth

  4145 mm

  Max. Digging Reach

  8610 mm

  Max. Digging Reach at Ground Level

  8405 mm

  Min. Front Swing Radius

  3020 mm

  Max. Raising Height above Ground of Dozer Blade

  480 mm

  Max. Lowering Depth from Ground of Dozer Blade

  120 mm

• Performance
  Bucket Digging Force

  100 kN

  Arm Digging Force

  84 kN

  Max. Drawbar Pull

  76 kN

  Gradeability

  57 %

  Ground Pressure

  – kPa

  Travel Speed(Max/Min)

  32/8.0 km/h

  Swing Speed

  12 rpm

• Oil Tank Capacity
  Fuel Tank Capacity

  300 L

  Hydraulic Tank Capacity

  185 L

• Engine
  Model

  F3.8

  Rated Power

  115/2200 kw/rpm

  Max. Torque

  620/1500 N.m/rpm

  Displacement

  3.8 L

• Hydraulic System
  Main pump
  Type

  Variable plunger pump

  Max.Flow

  2*165 L/min

  System Pressure

  31.4/34.3 MPa

  Pilot pump

  Type

  Gear pump

  Max.Flow

  22 L/min

  Pressure

  3.9 MPa

  Flow of Aux 1（break）

  160 L/min

  Flow of Aux 2

  50 L/min
