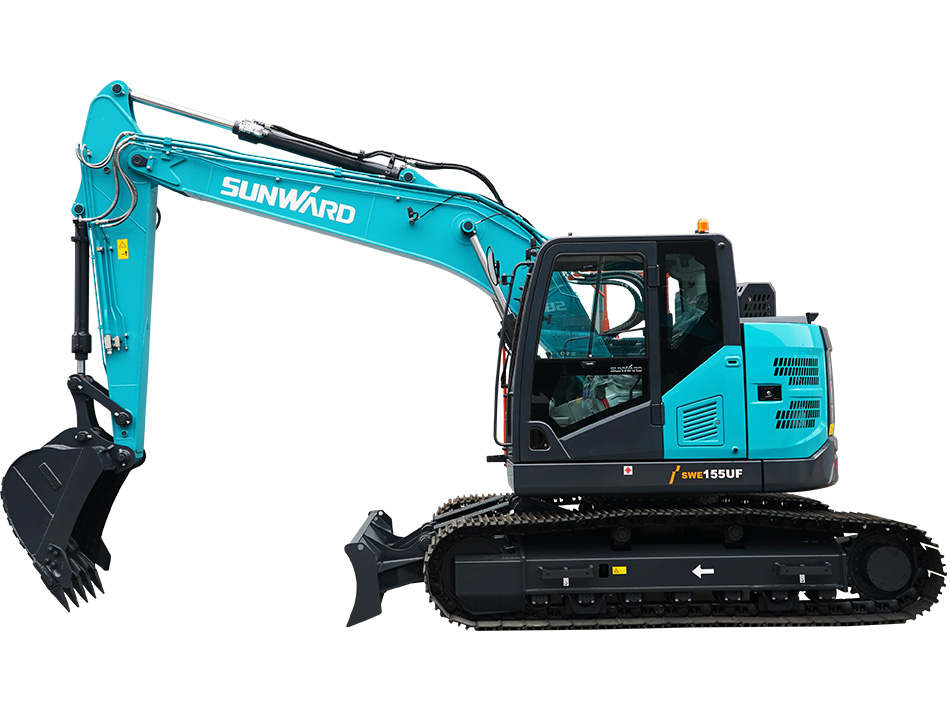

SWE155UF

Technical Parameters

• Basic Parameter
  Operating Weight

  16500 kg

  Bucket Capacity

  0.61 m³

• Overall Dimension
  Overall Length

  7910 mm

  Overall Height

  2945 mm

  Overall Width

  2600 mm

  Counterweight Clearance

  930 mm

  Ground Clearance

  410 mm

  Tail Swing Radius

  1490 mm

  Length to Center of Rollers

  3000 mm

  Track Length

  3765 mm

  Track Gauge

  2000 mm

  Track Width

  2600 mm

  Track Shoe Width

  600 mm

  Max. Height of Cab

  2945 mm

  Uppercarriage Width

  2490 mm

• Working Range
  Boom Length

  4600 mm

  Arm Length

  2500 mm

  Max. Digging Height

  8700 mm

  Max. Dumping Height

  6200 mm

  Max. Digging Depth

  5525 mm

  Max. Depth Cut for 2440 mm Level Bottom

  5320 mm

  Max. Vertical Digging Depth

  5140 mm

  Max. Digging Reach

  8370 mm

  Max. Digging Reach at Ground Level

  8225 mm

  Min. Front Swing Radius

  2640 mm

  Max. Raising Height above Ground of Dozer Blade

  520 mm

  Max. Lowering Depth from Ground of Dozer Blade

  558 mm

• Performance
  Bucket Digging Force

  100 kN

  Arm Digging Force

  76 kN

  Max. Drawbar Pull

  118 kN

  Gradeability

  57 %

  Ground Pressure

  41 kPa

  Travel Speed(Max/Min)

  5.3/3.2 km/h

  Swing Speed

  11 rpm

• Oil Tank Capacity
  Fuel Tank Capacity

  180 L

  Hydraulic Tank Capacity

  150 L

• Engine
  Model

  F3.8/Stage Ⅴ/Tier Ⅳ

  Rated Power

  90/2200 kw/rpm

  Max. Torque

  500/1500 N.m/rpm

  Displacement

  3.8 L

• Hydraulic System
  Main pump
  Type

  Variable plunger pump

  Max.Flow

  165*2+44 L/min

  System Pressure

  34.3/31.4 MPa

  Pilot pump

  Type

  Gear pump

  Max.Flow

  22 L/min

  Pressure

  3.9 MPa

  Flow of Aux 1（break）

  165 L/min

  Flow of Aux 2

  44 L/min
