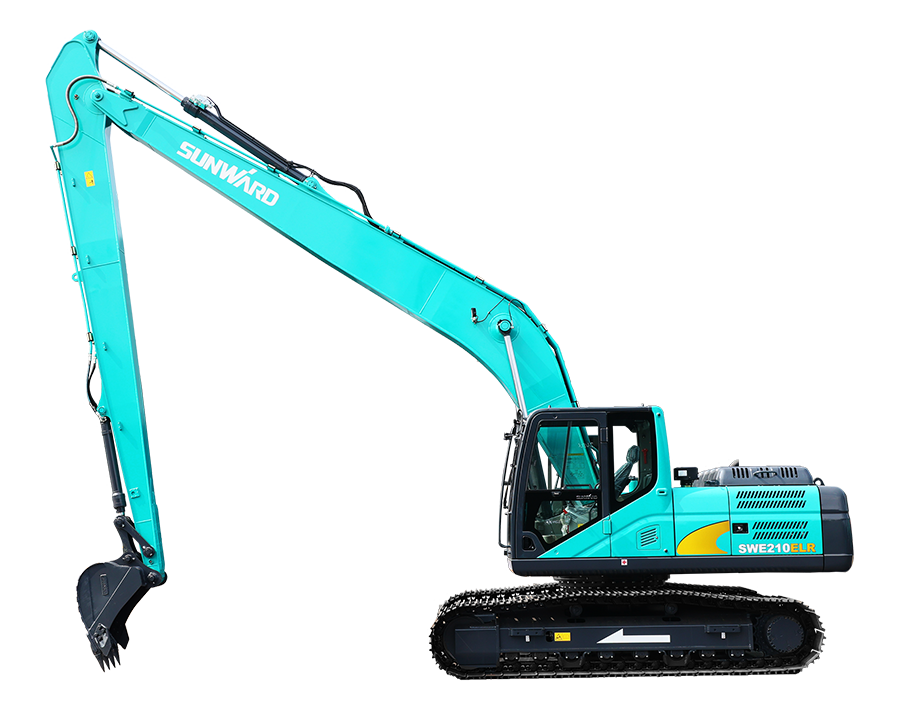

SWE210ELR
Weight of whole machine: 23.6~24.2 t
Standard bucket capicity: 0.35/0.45 m3
Technical Parameters
-
Parameters and performance of the main machineWeight of whole machine
23.6~24.2 t
Standard bucket capicity0.35/0.45 m3
Digging force of bucket76.5kN
Digging force of arm58.6kN
Max. Traction232 kN
Traveling speed(Max/Min)0~4.4 km/h
Gradeability30 °
Ground pressure51/38.2kPa
Swing speed10.6 rpm
-
EngineBrand
ISUZU
Model6BGI
Type4-stroke water cooling supercharging
Displacement6.494 L
Power/rpm113/2100 kw/rpm
-
PrimarypumpType
2 x piston variable pump
Flow rate2*212 L/min
Fuel tank capacity370 L
Pressure of main relief valve31.4/.34.3 MPa
Hydraulic oil tank capacity250 L
-
Working RangeBoom Length
8000 mm
Arm Length6000 mm
Max. Digging Height12700 mm
Max. Dumping Height10300 mm
Max. Digging Depth11600 mm
Max. Depth Cut for 2440 mm Level Bottom11500 mm
Max. Vertical Digging Depth9850 mm
Max. Digging Reach14950 mm
Max. Digging Reach at Ground Level14850 mm
Min. Front Swing Radius5030 mm
-
Outline dimensionTotal length
11940 mm
Total height3200 mm
Total width2800/3000 mm
Counterweight Clearance1060 mm
Chasis ground clearance480 mm
Tail swing radius2750 mm
Track length on the ground3465 mm
Track Length4260 mm
Shoe distance2200 mm
Track width2800/3000 mm
Shoe Width600/800 mm
Max height of total machine2960 mm
Swing width2710 mm
