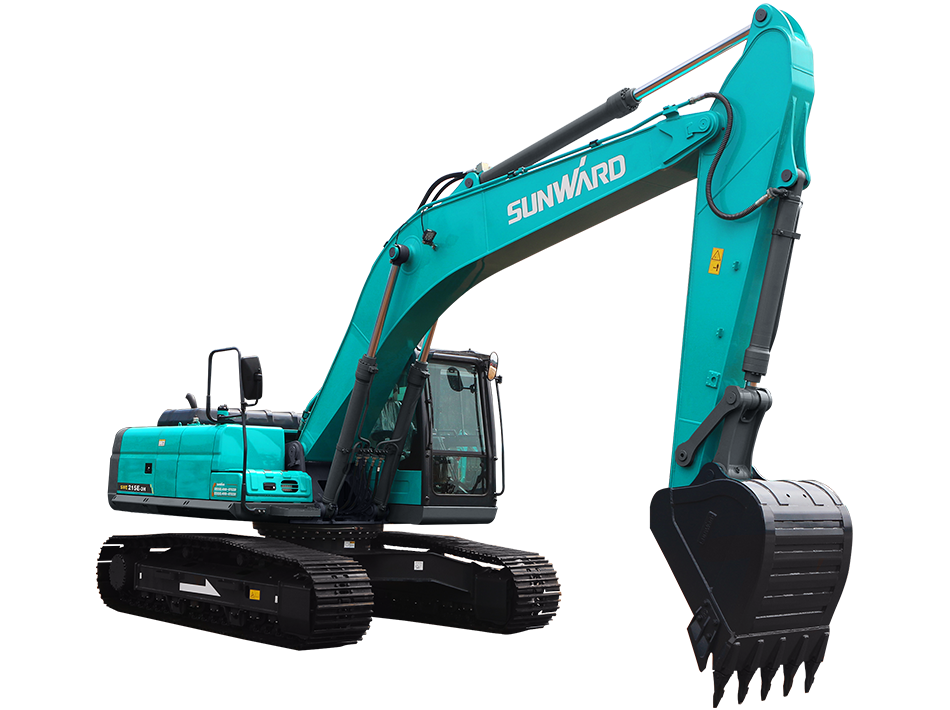

SWE215E-3H

Technical Parameters

• Parameters and performance of the main machine
  Weight of whole machine

  21.8 t

  Standard bucket capicity

  1 m³

  Digging force of bucket

  155kN

  Digging force of arm

  110 kN

  Max. Traction

  193 kN

  Traveling speed(Max/Min)

  5.2/3.3 km/h

  Gradeability

  35 °

  Ground pressure

  47kPa

  Swing speed

  11.8 rpm

• Engine
  Brand

  CUMMINS

  Model

  QSB7

  Type

  4-stroke water cooling supercharging

  Displacement

  6.7 L

  Power/rpm

  124/2050 kw/rpm

• Primarypump
  Type

  2 x piston variable pump

  Flow rate

  2*266 L/min

  Fuel tank capacity

  370 L

  Pressure of main relief valve

  31.4/.34.3 MPa

  Hydraulic oil tank capacity

  250 L

• Working Range
  Boom Length

  5700 mm

  Arm Length

  2920 mm

  Max. Digging Height

  9750 mm

  Max. Dumping Height

  6980 mm

  Max. Digging Depth

  6750 mm

  Max. Depth Cut for 2440 mm Level Bottom

  6560 mm

  Max. Vertical Digging Depth

  5900 mm

  Max. Digging Reach

  9940 mm

  Max. Digging Reach at Ground Level

  9775 mm

  Min. Front Swing Radius

  3560 mm

• Outline dimension
  Total length

  9570 mm

  Total height

  2970 mm

  Total width

  2970 mm

  Counterweight Clearance

  1070 mm

  Chasis ground clearance

  480 mm

  Tail swing radius

  2835 mm

  Track length on the ground

  3465 mm

  Track Length

  4260 mm

  Shoe distance

  2390 mm

  Track width

  2990 mm

  Shoe Width

  600 mm

  Max height of total machine

  2960 mm

  Swing width

  2830 mm
