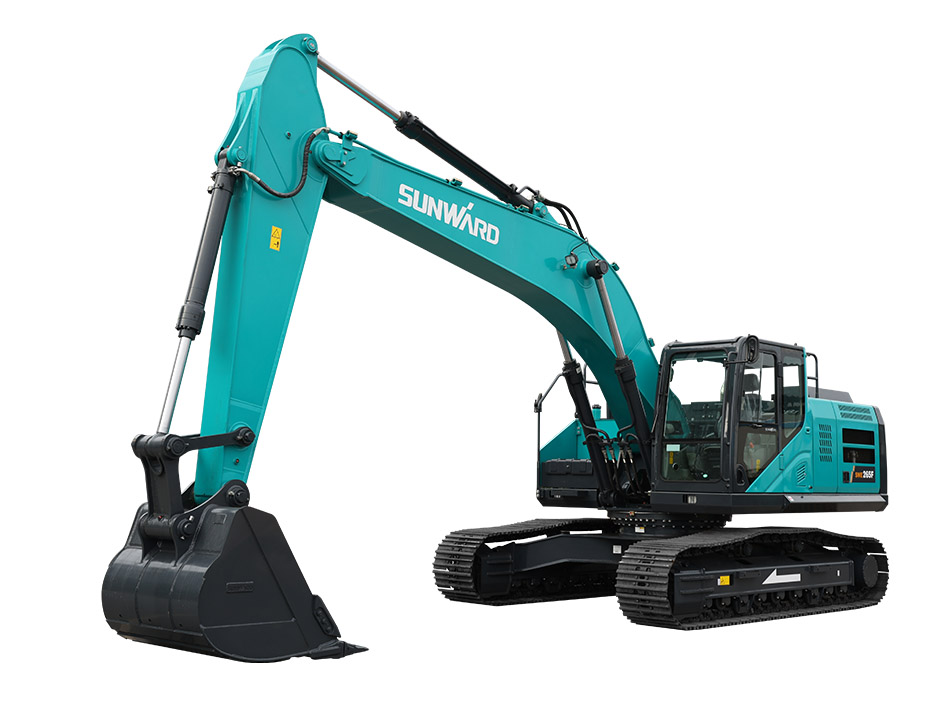

SWE265F
Operating Weight: 27300kg
Bucket Capacity: 1.6m3
Technical Parameters
-
Basic ParameterOperating Weight
27300 kg
Bucket Capacity1.6 m3
-
Overall DimensionOverall Length
10195 mm
Overall Height3330 mm
Overall Width3190 mm
Counterweight Clearance1100 mm
Ground Clearance490 mm
Tail Swing Radius3115 mm
Length to Center of Rollers3845 mm
Track Length4650 mm
Track Gauge2590 mm
Track Width3190 mm
Track Shoe Width600 mm
Max. Height of Cab3005 mm
Uppercarriage Width3100 mm
-
Working RangeBoom Length
5900 mm
Arm Length3000 mm
Max. Digging Height9805 mm
Max. Dumping Height6865 mm
Max. Digging Depth7030 mm
Max. Depth Cut for 2440 mm Level Bottom6860 mm
Max. Vertical Digging Depth6275 mm
Max. Digging Reach10370 mm
Max. Digging Reach at Ground Level10200 mm
Min. Front Swing Radius3950 mm
Max. Raising Height above Ground of Dozer Blade– mm
Max. Lowering Depth from Ground of Dozer Blade– mm
-
PerformanceBucket Digging Force
192 kN
Arm Digging Force124 kN
Max. Drawbar Pull234 kN
Gradeability70 %
Ground Pressure53.41 kPa
Travel Speed(Max/Min)5.8/3.5 km/h
Swing Speed10.7 rpm
-
Oil Tank CapacityFuel Tank Capacity
450 L
Hydraulic Tank Capacity330 L
-
EngineModel
QSB7
Rated Power169/2050 kw/rpm
Max. Torque895/1200-1700 N.m/rpm
Displacement6.7 L
-
Hydraulic SystemMain pumpType
Variable plunger pump
Max.Flow2*287 L/min
System Pressure34.3/37 MPa
Pilot pumpTypeGear pump
Max.Flow20.5 L/min
Pressure3.9 MPa
Flow of Aux 1（break）259 L/min
Flow of Aux 2– L/min
