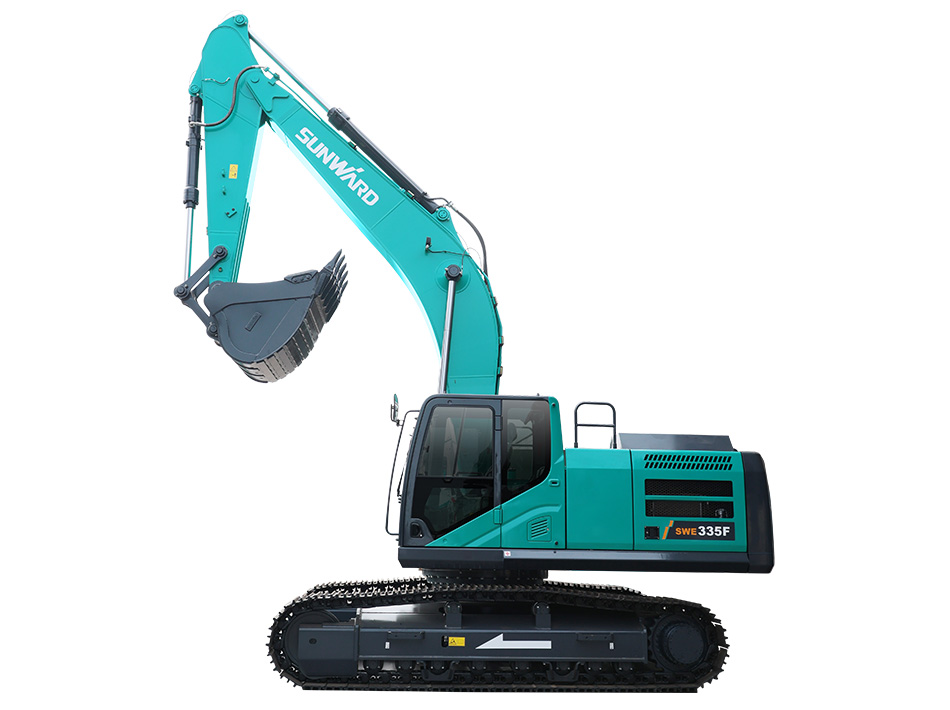

SWE335F-5
Operating Weight: 33600kg
Bucket Capacity: 1.7m3
Technical Parameters
-
Basic ParameterOperating Weight
33600 kg
Bucket Capacity1.7 m3
-
Overall DimensionOverall Length
10866 mm
Overall Height3600 mm
Overall Width3190 mm
Counterweight Clearance1235 mm
Ground Clearance530 mm
Tail Swing Radius3520 mm
Length to Center of Rollers3930 mm
Track Length4860 mm
Track Gauge2590 mm
Track Width3190 mm
Track Shoe Width600 mm
Max. Height of Cab3600 mm
Uppercarriage Width3110 mm
-
Working RangeBoom Length
6150 mm
Arm Length2900 mm
Max. Digging Height10330 mm
Max. Dumping Height7280 mm
Max. Digging Depth7010 mm
Max. Depth Cut for 2440 mm Level Bottom6840 mm
Max. Vertical Digging Depth5920 mm
Max. Digging Reach10570 mm
Max. Digging Reach at Ground Level10370 mm
Min. Front Swing Radius4005 mm
Max. Raising Height above Ground of Dozer Blade/
Max. Lowering Depth from Ground of Dozer Blade/
-
PerformanceBucket Digging Force
214 kN
Arm Digging Force165 kN
Max. Drawbar Pull297 kN
Gradeability70 %
Ground Pressure63.8 kPa
Travel Speed(Max/Min)5.8/4 km/h
Swing Speed9 rpm
-
Oil Tank CapacityFuel Tank Capacity
600 L
Hydraulic Tank Capacity400 L
-
EngineModel
B6.7-129-SV
Rated Power209/2000 kw/rpm
Max. Torque1280/1500 N.m/rpm
Displacement6.7 L
-
Hydraulic SystemMain pumpType
2×Variable plunger pump
Max.Flow2×296 L/min
System Pressure34.3 MPa
Pilot pumpTypeGear pump
Max.Flow27.75 L/min
Pressure3.9 MPa
Max.Flow9.6 L/min
Pressure3.9 MPa
Flow of Aux 1（break）296 L/min
Flow of Aux 237 L/min
