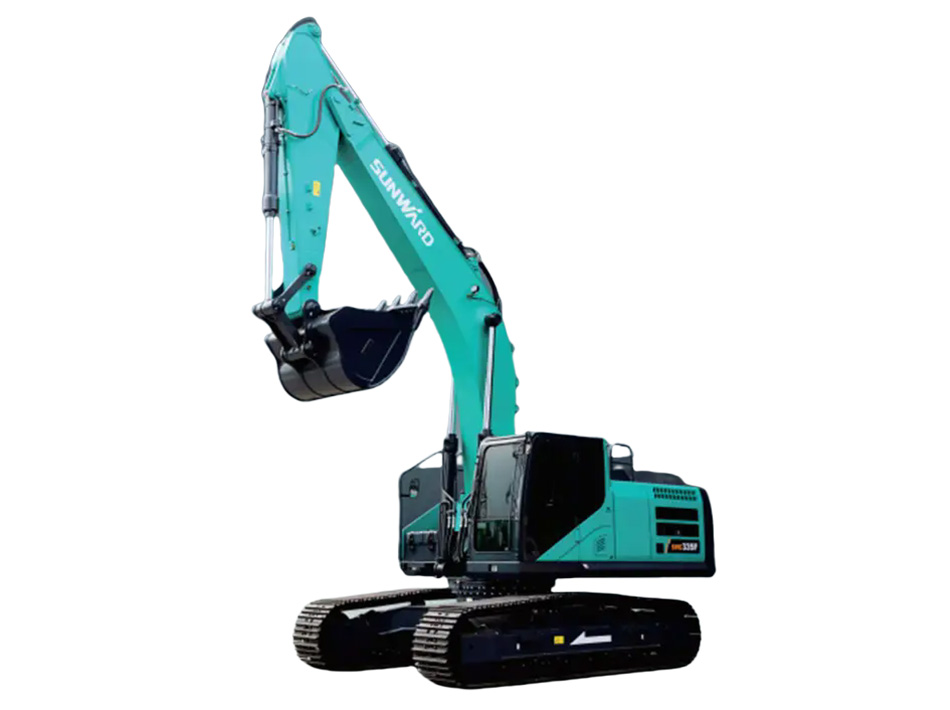

SWE375FES
Operating Weight: 37500kg
Bucket Capacity: 1.8m3
Technical Parameters
-
Basic ParameterOperating Weight
37500 kg
Bucket Capacity1.8 m3
-
Overall DimensionOperating weight
11370 mm
Overall Height3630 mm
Overall Width3190 mm
Counterweight Clearance1270 mm
Ground Clearance537 mm
Tail Swing Radius3620 mm
Length to Center of Rollers4025 mm
Track Length4940 mm
Track Gauge2590 mm
Track Width3190 mm
Track Shoe Width600 mm
Max. Height of Cab3275 mm
Uppercarriage Width3120 mm
-
Working RangeBoom Length
6500 mm
Arm Length2900 mm
Max. Digging Height10390 mm
Max. Dumping Height7350 mm
Max. Digging Depth7100 mm
Max. Depth Cut for 2440 mm Level Bottom6930 mm
Max. Vertical Digging Depth5825 mm
Max. Digging Reach10935 mm
Max. Digging Reach at Ground Level10720 mm
Min. Front Swing Radius4485 mm
Max. Raising Height above Ground of Dozer Blade– mm
Max. Lowering Depth from Ground of Dozer Blade– mm
-
PerformanceBucket Digging Force
253 kN
Arm Digging Force198 kN
Max. Drawbar Pull307 kg
Gradeability70 %
Ground Pressure76 kPa
Travel Speed(Max/Min)6.2/3.6 km/h
Swing Speed9.1 rpm
-
Oil Tank CapacityFuel Tank Capacity
700 L
Hydraulic Tank Capacity475 L
-
EngineModel
AE-6HK1X
Rated Power212/2000 kw/rpm
Max. Torque1080/1500 N.m/rpm
Displacement7.79 L
-
Hydraulic SystemMain pumpType
Variable plunger pump
Max.Flow2×324 L/min
System Pressure34.3 MPa
Pilot pumpTypeGear pump
Max.Flow27 L/min
Pressure3.9 MPa
Flow of Aux 1（break）300 L/min
Flow of Aux 2– L/min
