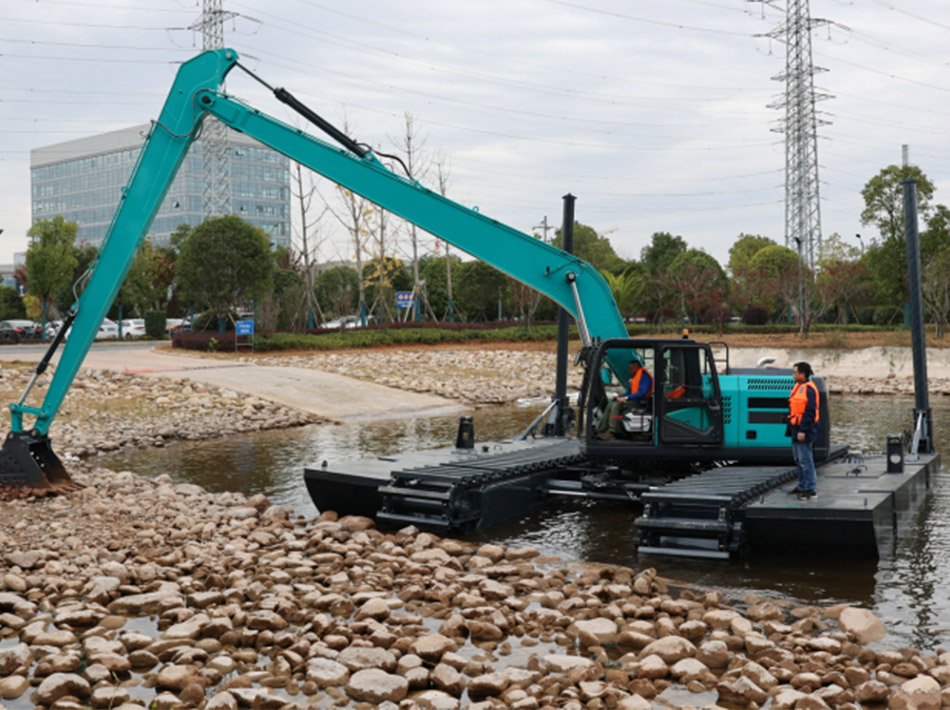

SWE400E-SL

Technical Parameters

• Specifications
  Operating Weight

  41 t

  Bucket Capacity

  0.6 m²

• Engine
  Model

  QS87

  Type

  Four-strokn,superchargig,inter-crding and drect ijaction

  Power

  124/2050 KW/pm

  Maximum Torque

  685/1200 Nm/pm

  Displcement

  6.7

  Type of Primary Pump

  Variatle displacement piston pump-2

  Maximum Flow of Main Pump

  2-225 L/min

  System Pressure

  314/34.3 Mpa

  Type of Plot Pump

  Gear pump-1

  Maximum Flow of Plet Pump

  18 L/mm

  Pressure of Plat Pump

  3.9 Mpa

• Performance Parameters
  Sleaing Speed

  11.5 mpm

  Travding Speed

  25/16 mm

  Max. Digging Height

  25/16 km/h

  Gradeabilty

  30

  Track Width

  1150 mm

  Hoaling Speed on Water

  55 km/h

  Capacity of Fuel Tank

  370-1000(auxilary fud tank] L

  Capacity of Hydraic Oil Tank

  250 L

• Working Range,Digging Lorce
  800M

  9000 mm

  ARM

  6200 mm

  Max. Digging Height

  14400 mm

  Max. Unloading Height

  11280 mm

  Max. Digging Depth

  11350 mm

  Max. Vertical Digging Depth

  10800 mm

  Max. Digging Radius

  15930 mm

  Max. Ground Dggingreach

  15970 mm

  Max. Water Digging Depth

  12850 mm

  Min. Slewing Radius

  3560 mm

  Digging force of bucket(ISU supercharging)

  107.4 KN

  Digging force of amilSO supercharging)

  62.1 KN

• Dimension
  Total Length

  14930 mm

  Length of Main Floating Tank

  9690 mm

  Wheel Base

  8800 mm

  Height of Main Floating Tank

  1800 mm

  Total Height

  3800 mm

  Track Shoe Width

  1150 mm

  Length of Anchor Bolt

  6500 mm

  Main Floating Tank Width

  1350 mm

  Chassis Width[Retract/Extend]

  3990/5190 mm

  Groundinglength

  5800 mm

  Overall Width(retracted/extended)

  7030/8230 mm
