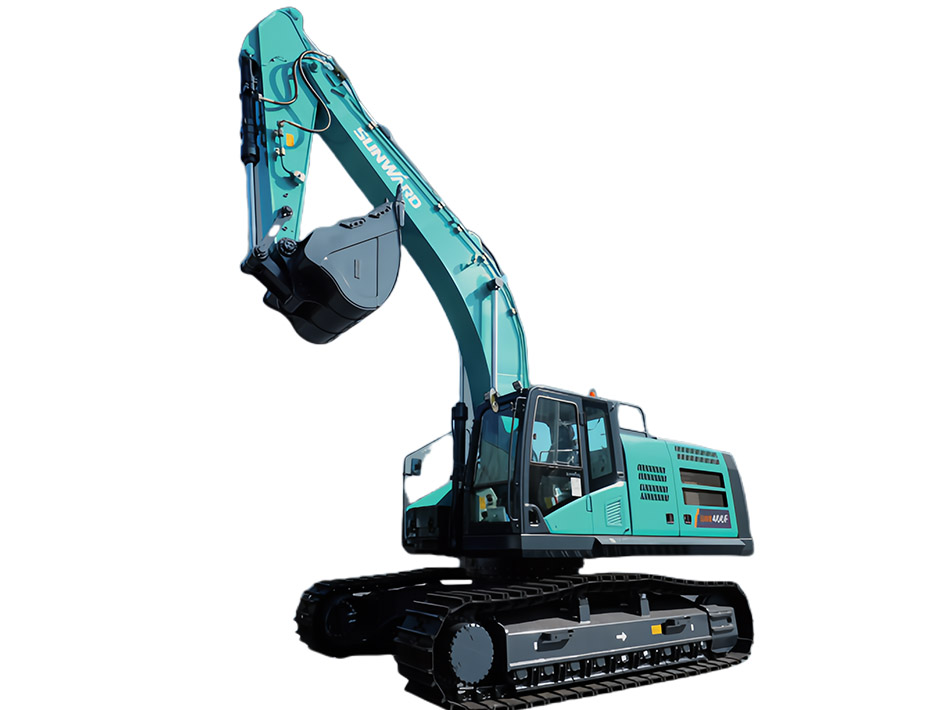

SWE400F-5
Total weight: 39.2t
Engine power: 214kW/2100rpm
Technical Parameters
-
Main PerformanceTotal weight
39.2t
Engine power214kW/2100rpm
Bucket capacity2.0m³
working weight39200 kg
-
PerformanceBucket Digging Force
249 kN
Arm Digging Force207 kN
Max. Traction348 kN
Max climbing angle70 %
Ground Pressure69.6 kPa
Travel Speed(Max/Min)45 t
Dimensions5.2/3.0 km/h
Swing speed9.6 rpm
-
Oil tank capacityFuel
700 L
Hydraulic Oil475 l
-
EngineModel
L9S5-C338
Power252/1800 kw/rpm
Power252/1800 kw/rpm
Max torque1526/1400 N.m/rpm
Displacement8.9 L
-
Working rangeBoom length
6500 mm
Arm length2800 mm
Max. Digging Height10375 mm
Max. Dumping Height7175 mm
Max. Digging Depth2800 mm
Arm length7020 mm
Digging Depth(2.44 meter)6855 mm
Max. Vertical Wall Digging Depth5500 mm
Max. Digging Reach10925 mm
Max. Reach at Ground Level10705 mm
Min swing radius in the front4510 mm
-
Outline dimensionTotal length
11400 mm
Total height3630 mm
Total width3350 mm
Counterweight Clearance1300 mm
Chasis ground clearance550 mm
Tail swing radius3615 mm
Track length on the ground4160 mm
Track Length5115 mm
Track gauge2740 mm
Track width3340 mm
Shoe Width600 mm
Max height of total machine3330 mm
Swing width3120 mm
