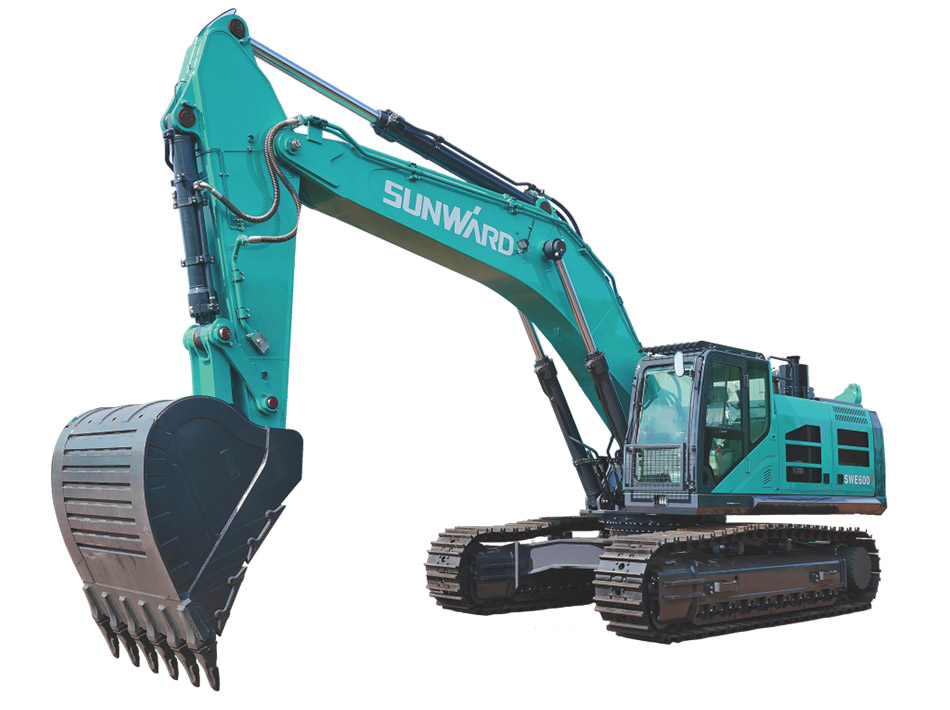

SWE600F

Technical Parameters

• Basic Parameter
  Operating Weight

  52800 kg

  Bucket Capacity

  3.2 m³

• Overall Dimension
  Operating weight

  11540 mm

  Overall Height

  4080 mm

  Overall Width

  3560 mm

  Counterweight Clearance

  1350 mm

  Ground Clearance

  560 mm

  Tail Swing Radius

  3750 mm

  Length to Center of Rollers

  4410 mm

  Track Length

  5480 mm

  Track Gauge

  2740 mm

  Track Width

  3340 mm

  Track Shoe Width

  600 mm

  Max. Height of Cab

  3360 mm

  Uppercarriage Width

  3270 mm

• Working Range
  Boom Length

  6400 mm

  Arm Length

  2900 mm

  Max. Digging Height

  10540 mm

  Max. Dumping Height

  7190 mm

  Max. Digging Depth

  6780 mm

  Max. Depth Cut for 2440 mm Level Bottom

  6620 mm

  Max. Vertical Digging Depth

  5010 mm

  Max. Digging Reach

  11040 mm

  Max. Digging Reach at Ground Level

  10800 mm

  Min. Front Swing Radius

  4560 mm

  Max. Raising Height above Ground of Dozer Blade

  – mm

  Max. Lowering Depth from Ground of Dozer Blade

  – mm

• Performance
  Bucket Digging Force

  297 kN

  Arm Digging Force

  261 kN

  Max. Drawbar Pull

  423 kg

  Gradeability

  70 %

  Ground Pressure

  87.8 kPa

  Travel Speed(Max/Min)

  5.2/3.0 km/h

  Swing Speed

  9.9 rpm

• Oil Tank Capacity
  Fuel Tank Capacity

  850 L

  Hydraulic Tank Capacity

  520 L

• Engine
  Model

  GH-6WG1

  Rated Power

  300/1800 kw/rpm

  Max. Torque

  1932/1400 N.m/rpm

  Displacement

  15.681 L

• Hydraulic System
  Main pump
  Type

  Variable plunger pump

  Max.Flow

  2×391 L/min

  System Pressure

  34.3 MPa

  Pilot pump

  Type

  Gear pump

  Max.Flow

  27 L/min

  Pressure

  3.9 MPa

  Flow of Aux 1（break）

  300 L/min

  Flow of Aux 2

  – L/min
