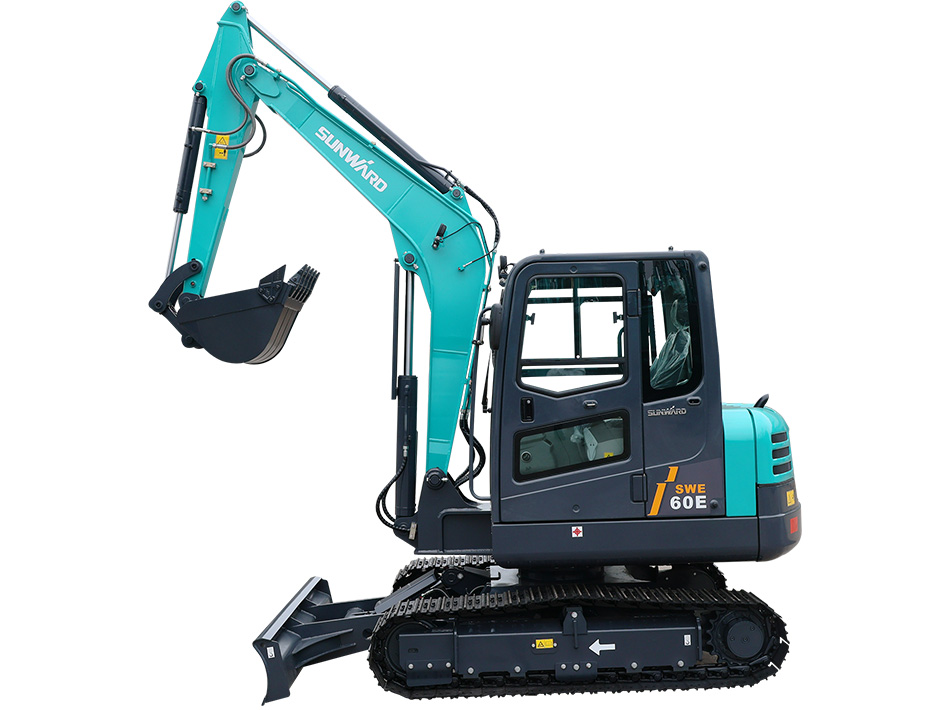

SWE60E-6

Technical Parameters

• Basic Parameter
  Operating Weight

  6000 kg

  Bucket Capacity

  0.22 m³

• Overall Dimension
  Overall Length

  5970 mm

  Overall Height

  2650 mm

  Overall Width

  2000 mm

  Counterweight Clearance

  730 mm

  Ground Clearance

  375 mm

  Tail Swing Radius

  1645 mm

  Length to Center of Rollers

  2190 mm

  Track Length

  2690 mm

  Track Gauge

  1600 mm

  Track Width

  2000 mm

  Track Shoe Width

  400 mm

  Max. Height of Cab

  2650 mm

  Uppercarriage Width

  1850 mm

• Working Range
  Boom Length

  3000 mm

  Arm Length

  1600 mm

  Max. Digging Height

  5755 mm

  Max. Dumping Height

  4160 mm

  Max. Digging Depth

  3725 mm

  Max. Depth Cut for 2440 mm Level Bottom

  3320 mm

  Max. Vertical Digging Depth

  2800 mm

  Max. Digging Reach

  6170 mm

  Max. Digging Reach at Ground Level

  6030 mm

  Min. Front Swing Radius

  2410 mm

  Max. Raising Height above Ground of Dozer Blade

  415 mm

  Max. Lowering Depth from Ground of Dozer Blade

  390 mm

• Performance
  Bucket Digging Force

  47 kN

  Arm Digging Force

  31 kN

  Max. Drawbar Pull

  59 kN

  Gradeability

  70 %

  Ground Pressure

  31.2 kPa

  Travel Speed(Max/Min)

  4.0/2.0 km/h

  Swing Speed

  10 rpm

• Oil Tank Capacity
  Fuel Tank Capacity

  128 L

  Hydraulic Tank Capacity

  94 L

• Engine
  Model

  4TNV94L-ZCWC China Ⅳ

  Rated Power

  35.9/2000 kw/rpm

  Max. Torque

  200.8/1400 N.m/rpm

  Displacement

  3 L

• Hydraulic System
  Main pump
  Type

  One variable plunger pump

  Max.Flow

  144 L/min

  System Pressure

  25 MPa

  Pilot pump

  Type

  –

  Max.Flow

  – L/min

  Pressure

  – MPa

  Flow of Aux 1（break）

  80 L/min

  Flow of Aux 2

  – MPa
