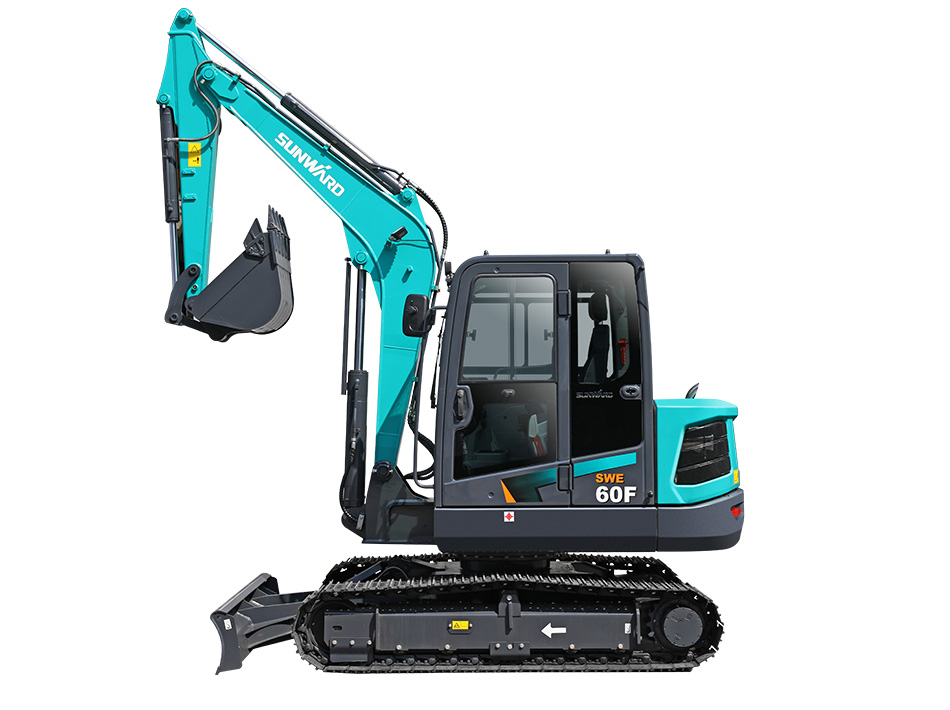

SWE60F
Operating Weight: 6000kg
Bucket Capacity: 0.22m3
Technical Parameters
-
Basic ParameterOperating Weight
6000 kg
Bucket Capacity0.22 m3
-
Overall DimensionOverall Length
5970 mm
Overall Height2650 mm
Overall Width2000 mm
Counterweight Clearance730 mm
Ground Clearance375 mm
Tail Swing Radius1645 mm
Length to Center of Rollers2190 mm
Track Length2690 mm
Track Gauge1600 mm
Track Width2000 mm
Track Shoe Width400 mm
Max. Height of Cab2650 mm
Uppercarriage Width1850 mm
-
Working RangeBoom Length
3000 mm
Arm Length1600 mm
Max. Digging Height5755 mm
Max. Dumping Height4160 mm
Max. Digging Depth3725 mm
Max. Depth Cut for 2440 mm Level Bottom3320 mm
Max. Vertical Digging Depth2800 mm
Max. Digging Reach6170 mm
Max. Digging Reach at Ground Level6030 mm
Min. Front Swing Radius2410 mm
Max. Raising Height above Ground of Dozer Blade415 mm
Max. Lowering Depth from Ground of Dozer Blade390 mm
-
PerformanceBucket Digging Force
47 kN
Arm Digging Force31 kN
Max. Drawbar Pull59 kN
Gradeability70 %
Ground Pressure31.2 kPa
Travel Speed(Max/Min)4.0/2.0 km/h
Swing Speed10 rpm
-
Oil Tank CapacityFuel Tank Capacity
128 L
Hydraulic Tank Capacity94 L
-
EngineModel
4TNV94L-ZCWC China Ⅳ
Rated Power35.9/2000 kw/rpm
Max. Torque200.8/1400 N.m/rpm
Displacement3 L
-
Hydraulic SystemMain pumpType
One variable plunger pump
Max.Flow144 L/min
System Pressure25 MPa
Pilot pumpType–
Max.Flow– L/min
Pressure– MPa
Flow of Aux 1（break）80 L/min
Flow of Aux 2– MPa
