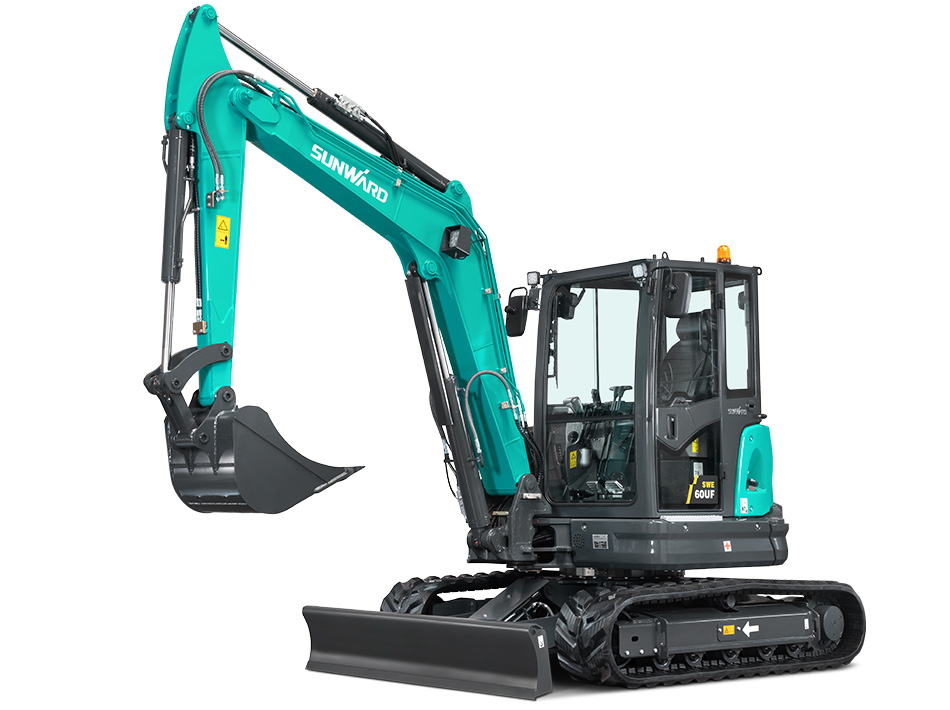

SWE60UF

Technical Parameters

• Basic Parameter
  Operating Weight

  6000 kg

  Bucket Capacity

  0.18 m³

• Overall Dimension
  Overall Length

  5680 mm

  Overall Height

  2570 mm

  Overall Width

  2000 mm

  Counterweight Clearance

  640 mm

  Ground Clearance

  330 mm

  Tail Swing Radius

  1050 mm

  Length to Center of Rollers

  1985 mm

  Track Length

  2490 mm

  Track Gauge

  1600 mm

  Track Width

  2000 mm

  Track Shoe Width

  400 mm

  Max. Height of Cab

  2570 mm

  Uppercarriage Width

  1845 mm

• Working Range
  Boom Length

  2900 mm

  Arm Length

  1600 mm

  Max. Digging Height

  5600 mm

  Max. Dumping Height

  3950 mm

  Max. Digging Depth

  3700 mm

  Max. Depth Cut for 2440 mm Level Bottom

  3300 mm

  Max. Vertical Digging Depth

  3050 mm

  Max. Digging Reach

  6260 mm

  Max. Digging Reach at Ground Level

  6140 mm

  Min. Front Swing Radius

  2560 mm

  Max. Raising Height above Ground of Dozer Blade

  400 mm

  Max. Lowering Depth from Ground of Dozer Blade

  435 mm

• Performance
  Bucket Digging Force

  47 kN

  Arm Digging Force

  31 kN

  Max. Drawbar Pull

  49 kN

  Gradeability

  70 %

  Ground Pressure

  34 kPa

  Travel Speed(Max/Min)

  4.2/2.2 km/h

  Swing Speed

  10 rpm

• Oil Tank Capacity
  Fuel Tank Capacity

  70 L

  Hydraulic Tank Capacity

  70 L

• Engine
  Model

  V2607 Stage Ⅴ/Tier Ⅳ/V2607 China Ⅲ

  Rated Power

  35/2200 kw/rpm

  Max. Torque

  174.1/1500 Stage Ⅴ/Tier Ⅳ N.m/rpm

  Displacement

  174.1/1300 China Ⅲ L

• Hydraulic System
  Main pump
  Type

  2.6

  Max.Flow

  One variable plunger pump

  System Pressure

  158.4 MPa

  Pilot pump

  Type

  25

  Max.Flow

  – L/min

  Pressure

  – MPa

  Flow of Aux 1（break）

  – L/min

  Flow of Aux 2

  95 L/min
