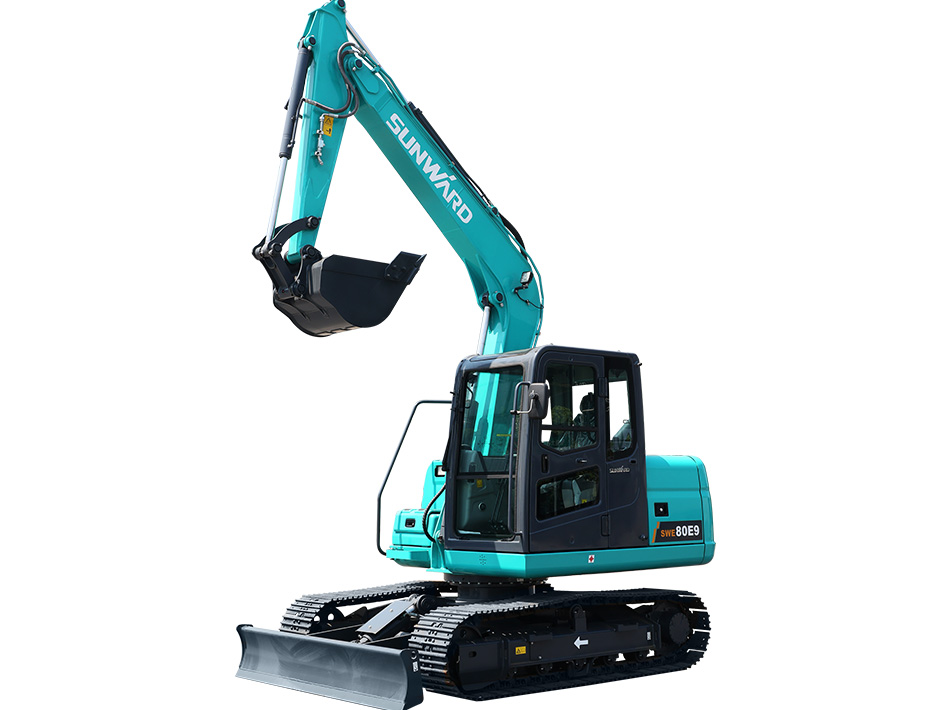

SWE80E9

Technical Parameters

• Basic Parameter
  Operating Weight

  7680 kg

  Bucket Capacity

  0.28~0.37 m³

• Overall Dimension
  Overall Length

  6100 mm

  Overall Height

  2650 mm

  Overall Width

  2270 mm

  Counterweight Clearance

  820 mm

  Ground Clearance

  400 mm

  Tail Swing Radius

  1800 mm

  Length to Center of Rollers

  2270 mm

  Track Length

  2900 mm

  Track Gauge

  1800 mm

  Track Width

  2250 mm

  Track Shoe Width

  450 mm

  Max. Height of Cab

  2650 mm

  Uppercarriage Width

  2130 mm

• Working Range
  Boom Length

  3720 mm

  Arm Length

  1680 mm

  Max. Digging Height

  7220 mm

  Max. Dumping Height

  5200 mm

  Max. Digging Depth

  4015 mm

  Max. Depth Cut for 2440 mm Level Bottom

  3680 mm

  Max. Vertical Digging Depth

  3270 mm

  Max. Digging Reach

  6415 mm

  Max. Digging Reach at Ground Level

  6235 mm

  Min. Front Swing Radius

  1945 mm

  Max. Raising Height above Ground of Dozer Blade

  400 mm

  Max. Lowering Depth from Ground of Dozer Blade

  400 mm

• Performance
  Bucket Digging Force

  57 kN

  Arm Digging Force

  38 kN

  Max. Drawbar Pull

  76 kN

  Gradeability

  70 %

  Ground Pressure

  33.3 kPa

  Travel Speed(Max/Min)

  4.2/2.2 km/h

  Swing Speed

  10 rpm

• Oil Tank Capacity
  Fuel Tank Capacity

  145 L

  Hydraulic Tank Capacity

  90 L

• Engine
  Model

  4TNV98-ZCSSUC China Ⅲ/4TNV98-ZCSSU China Ⅲ

  Rated Power

  46.3/2200 kw/rpm

  Max. Torque

  241/1650 N.m/rpm

  Displacement

  3.3 L

• Hydraulic System
  Main pump
  Type

  One variable plunger pump

  Max.Flow

  167 L/min

  System Pressure

  30 MPa

  Pilot pump

  Type

  –

  Max.Flow

  – L/min

  Pressure

  – MPa

  Flow of Aux 1（break）

  78.5 L/min

  Flow of Aux 2

  – L/min
