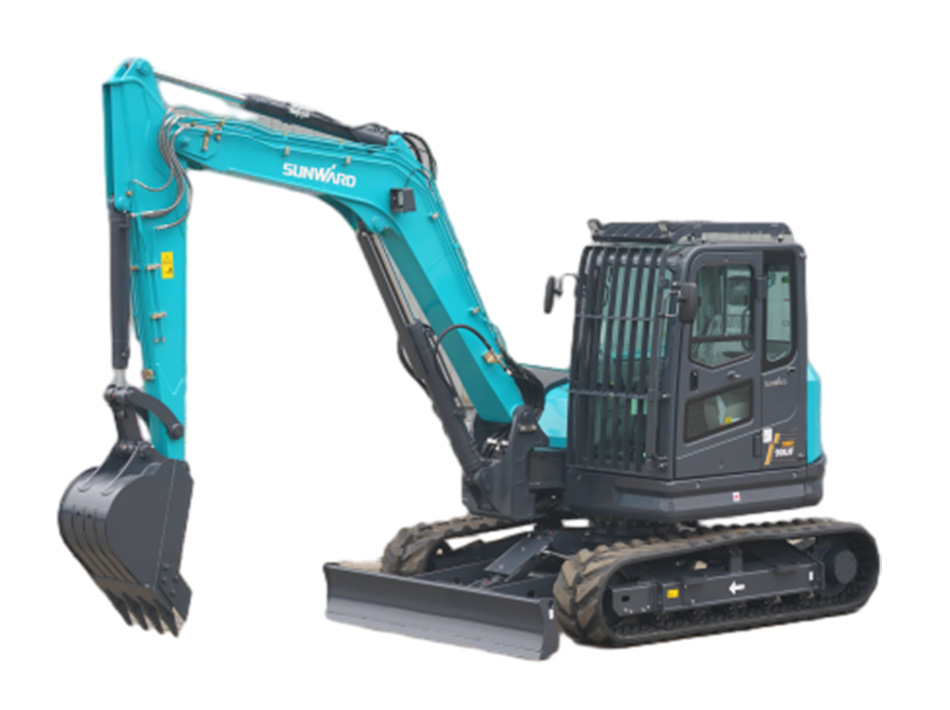

SWE90UF
Operating Weight: 8750kg
Bucket Capacity: 0.26m3
Technical Parameters
-
Basic ParameterOperating Weight
8750 kg
Bucket Capacity0.26 m3
-
Overall DimensionOverall Length
6495 mm
Overall Height2735 mm
Overall Width2270 mm
Counterweight Clearance800 mm
Ground Clearance400 mm
Tail Swing Radius1430 mm
Length to Center of Rollers2270 mm
Track Length2900 mm
Track Gauge1800 mm
Track Width2250 mm
Track Shoe Width450 mm
Max. Height of Cab2735 mm
Uppercarriage Width2220 mm
-
Working RangeBoom Length
3400 mm
Arm Length2100 mm
Max. Digging Height7290 mm
Max. Dumping Height5245 mm
Max. Digging Depth4545 mm
Max. Depth Cut for 2440 mm Level Bottom4245 mm
Max. Vertical Digging Depth3485 mm
Max. Digging Reach7445 mm
Max. Digging Reach at Ground Level7270 mm
Min. Front Swing Radius2765 mm
Max. Raising Height above Ground of Dozer Blade450 mm
Max. Lowering Depth from Ground of Dozer Blade485 mm
-
PerformanceBucket Digging Force
63.5 kN
Arm Digging Force38 kN
Max. Drawbar Pull71 kN
Gradeability70 %
Ground Pressure35.4 kPa
Travel Speed(Max/Min)4.7/2.7 km/h
Swing Speed10 rpm
-
Oil Tank CapacityFuel Tank Capacity
120 L
Hydraulic Tank Capacity80 L
-
EngineModel
4TNV98C-SSU/Stage Ⅴ
Rated Power46.2/2200 kw/rpm
Max. Torque241/1430 N.m/rpm
Displacement3.3 L
-
Hydraulic SystemMain pumpType
One variable plunger pump
Max.Flow158.4 L/min
System Pressure28 MPa
Pilot pumpTypeGear pump
Max.Flow12.1 L/min
Pressure3.9 MPa
Flow of Aux 1（break）95 L/min
Flow of Aux 270 L/min
