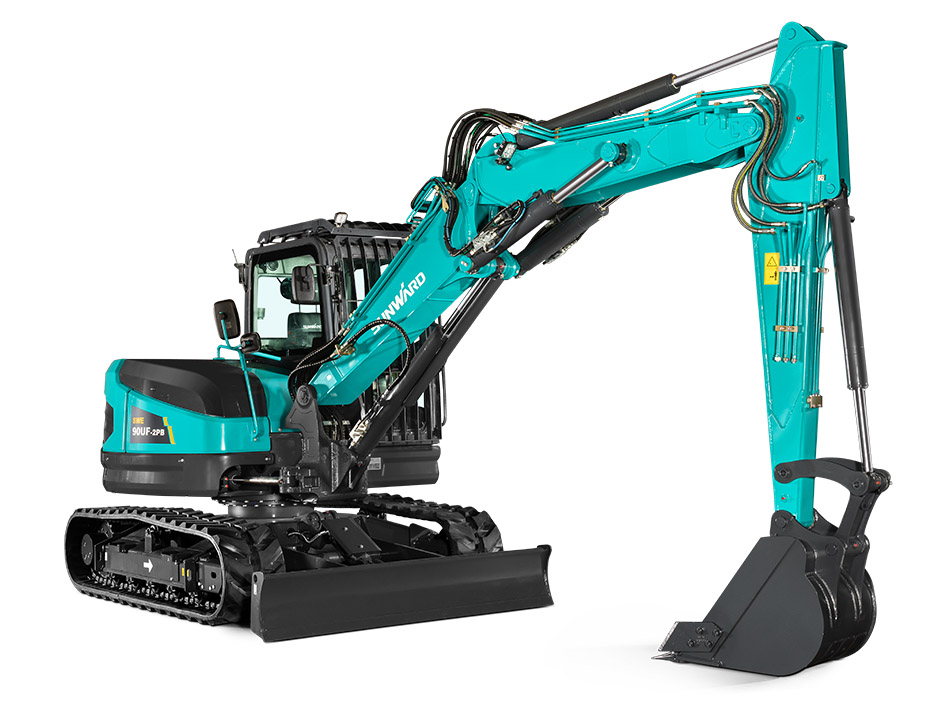

SWE90UF-2PB

Technical Parameters

• Basic Parameter
  Operating Weight

  9600 kg

  Bucket Capacity

  0.26 m³

• Overall Dimension
  Overall Length

  6535 mm

  Overall Height

  2735 mm

  Overall Width

  2270 mm

  Counterweight Clearance

  800 mm

  Ground Clearance

  400 mm

  Tail Swing Radius

  1430 mm

  Length to Center of Rollers

  2270 mm

  Track Length

  2900 mm

  Track Gauge

  1800 mm

  Track Width

  2250 mm

  Track Shoe Width

  450 mm

  Max. Height of Cab

  2735 mm

  Uppercarriage Width

  2220 mm

• Working Range
  Boom Length

  1950+2050 mm

  Arm Length

  2100 mm

  Max. Digging Height

  8240 mm

  Max. Dumping Height

  6135 mm

  Max. Digging Depth

  4735 mm

  Max. Depth Cut for 2440 mm Level Bottom

  4580 mm

  Max. Vertical Digging Depth

  4140 mm

  Max. Digging Reach

  8035 mm

  Max. Digging Reach at Ground Level

  7875 mm

  Min. Front Swing Radius

  2840 mm

  Max. Raising Height above Ground of Dozer Blade

  450 mm

  Max. Lowering Depth from Ground of Dozer Blade

  485 mm

• Performance
  Bucket Digging Force

  63.5 kN

  Arm Digging Force

  38 kN

  Max. Drawbar Pull

  71 kN

  Gradeability

  70 %

  Ground Pressure

  41.2 kPa

  Travel Speed(Max/Min)

  4.7/2.7 km/h

  Swing Speed

  10 rpm

• Oil Tank Capacity
  Fuel Tank Capacity

  120 L

  Hydraulic Tank Capacity

  80 L

• Engine
  Model

  4TNV98C-SSU/Stage Ⅴ

  Rated Power

  46.2/2200 kw/rpm

  Max. Torque

  241/1430 N.m/rpm

  Displacement

  3.3 L

• Hydraulic System
  Main pump
  Type

  One variable plunger pump

  Max.Flow

  158.4 L/min

  System Pressure

  28 MPa

  Pilot pump

  Type

  Gear pump

  Max.Flow

  12.1 L/min

  Pressure

  3.9 MPa

  Flow of Aux 1（break）

  95 L/min

  Flow of Aux 2

  70 L/min
