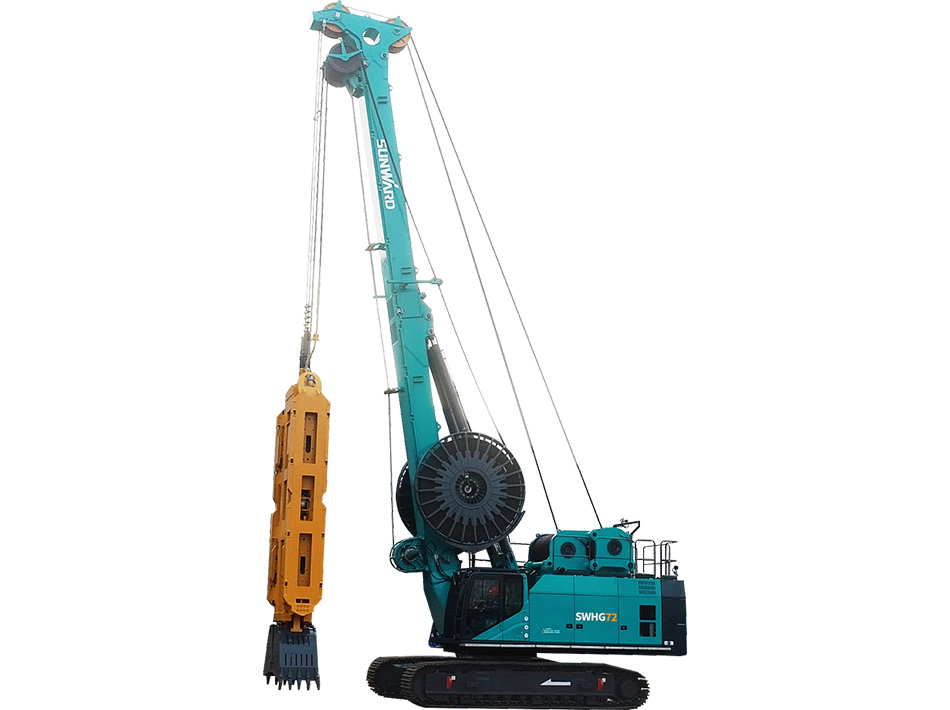

SWHG72
Max.Trenching:1800mm
Max.Trenching: 80/110m
Max. lifting force:2x360kN
Technical Parameters
-
Main winchMax.lifting force
2x360KN
Wire rope diameterΦ36mm
Max.Hoisting speed75/50m/min
-
EngineEngine model
QSM11(China Stage Three)/QSX12(China Stage Four)
Rated engine power298@2000/343@2100kW
-
Hydraulic SystemMax.system flow
2x470L/min
System pressure35MPa
-
ChassisStretch width
3300/4800mm
Center distance between two wheels of track5150mm
Track shoe width900mm
Max.driving speed1.5km/h
-
Parameters of machineMax.trenching depth
110/80m
Trenching thickness800-1800mm
Grab closing force2000kN
Grab opening time7s
Grab closing time8s
Grab weight18-35t
Working height18.9m
Working radius4470-5800mm
Working height above ground5500mm
Total weight (excluding grab)100t
