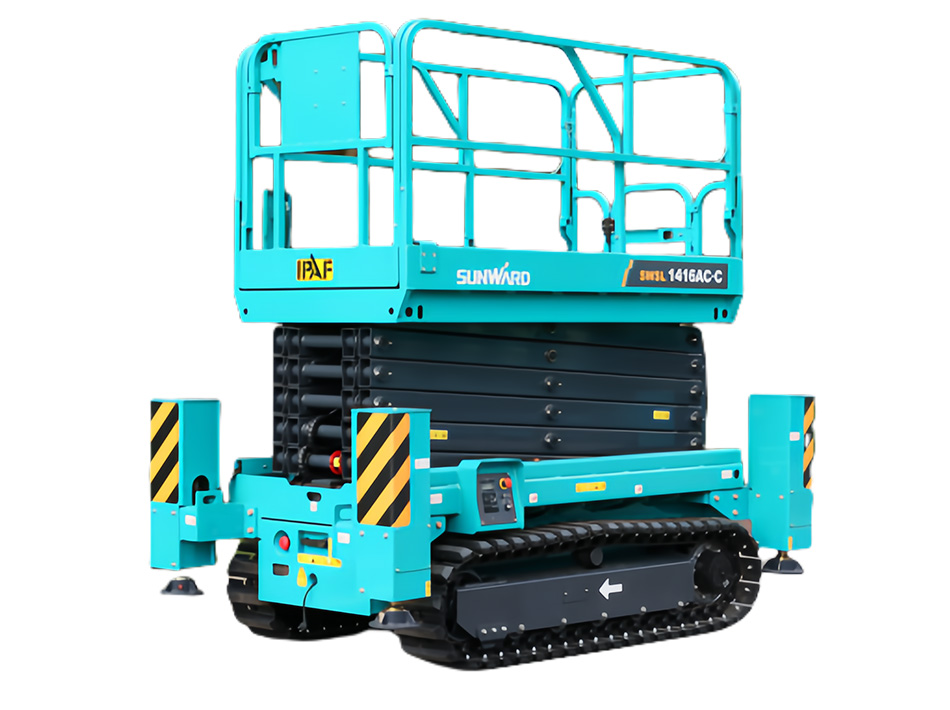

SWSL1416AC-C
Max.operating height: 14m
Max.platform height: 12m
Technical Parameters
-
DimensionMax.operating height
14m
Max.platform height12m
Storage platform height1.6m
Operating platform length2.27m
Extended dimension of platform0.9m
Operating platform width1.15m
Height-storage(guardrail lift)2.715m
Height-storage(guardrail folded)2.185m
Overall length2.85m
Overall width1.6m
Ground clearance0.15m
-
PerformanceRated load
320kg
Safety operation load of extended platform113kg
Max.number of people the platform can hold2
Travel speed3.2km/h
Turning radiusIn-site steering
Lifting/descending speed65/60s
Max.gradeability40%
Max.allowable angle of operation1.5°/3°
ControlProportion
DriveTrack rear drive
ControlProportion
-
PowerBattery
8x6V/200Ah
Charger48V/35A
Weight3900kg
