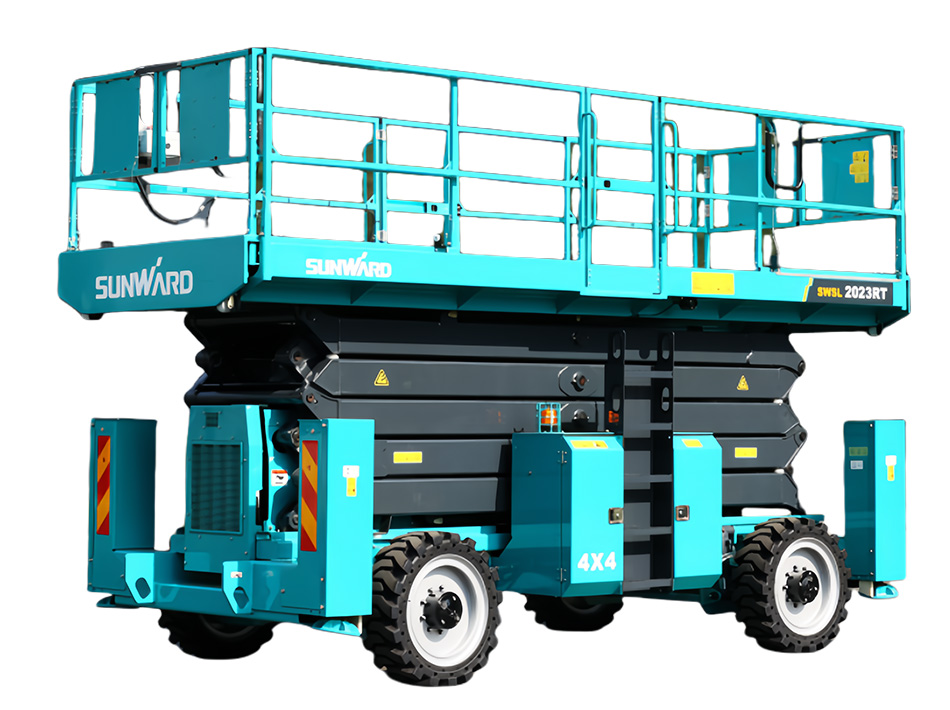

21 8 月, 2025SWSL2023RT
Maximum working height: 20m
Maximum platformheight: 18m
Technical Parameters
-
DimensionMaximum working height
20m
Maximum platformheight18m
Platform height (retracted)2.14m
Platform length (retracted)5.33m
Platform length (extended)7.53m
Extended platform length1.2m
Platform width (outside)1.9m
Overall height (guardrailraised)3.31m
Overall height (guardrailfolded)2.48m
Overall width2.39m
Overall length5.33m
Ground clearance0.27m
Wheel base2.88m
-
PerformanceSafe working load
545kg
Safe working load of extended platform227kg
Maximum number of workers4
Travel height10m
Travel speed (retracted)7.2km/h
Travel speed (extended)0.6km/h
Maximum working angle (lateral/longitudinal)2° / 3°
Minimum turning radius (inside/outside)2.08m / 5.3m
Ascending/descending speed65sec / 85sec
Maximum gradeability40%
ControlProportional control
DriveFour wheels
Tire33X12-20
Make and model of engineKubota V2403-CR-T-EW03
Engine power47.9kW/2700rpm
Hydraulic oil tank151L
Fuel tank95L
Overall weight10380kg
