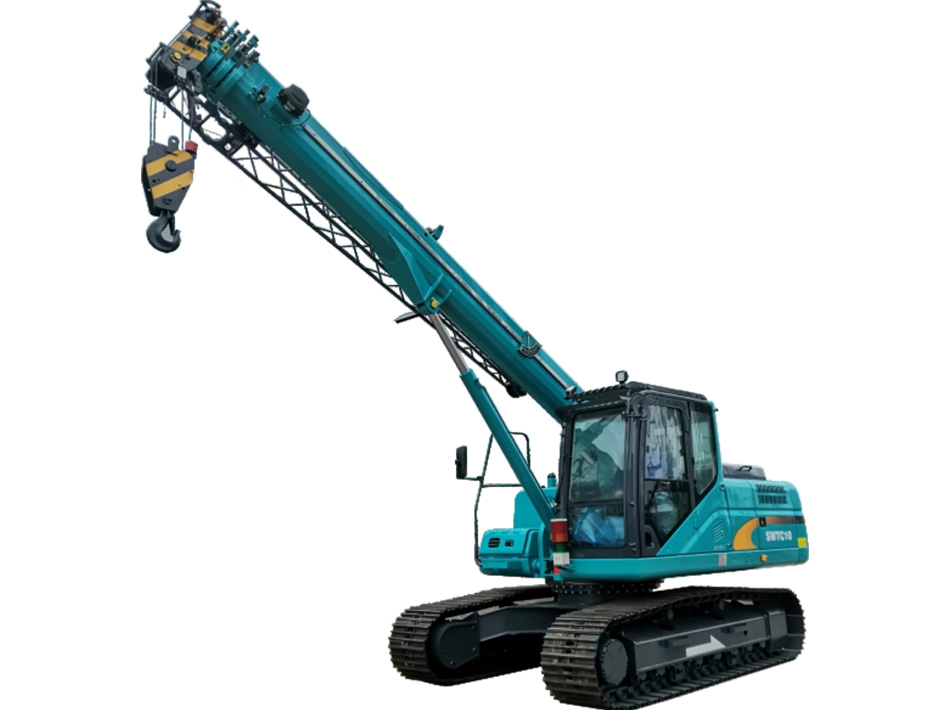

SWTC10
Max rated lifting capacity: 10t
Min rated range: 2.5m
Technical Parameters
-
Main performance parametersMax rated lifting capacity
10t
Min rated range2.5m
Turntable tail swing radius2750mm
Maximum load momentBasic boom333KN.m
Full extensional main boom156KN.m
Lifting heightBasic boom7m
Full extensional main boom21.5mm
Full extensional boom +jib26m
Boom lengthBasic boom6.8m
Full extensional main boom21.2m
Full extensional boom+jib21.2+5m
Installation angle of jib0、15、30、45
-
DimensionsOverall length
9073mm
Overall width (extension/retraction)2800mm
Overall height3070mm
Machine weight20.5t
-
TravelSpeed
2.7/4.1km/h
Minimum ground clearance of frame478mm
Max gradeability40%
Ground pressure0.05Mpa
-
Operating speedMaximum speed of hoisting single rope (no load)
115m/min
Boom telescopic time (extension/retraction)20/33S
Boom luffing time(up/down)12/16S
Swing speed3r/min
-
EngineModels
QSB6.7
TypeDirectinjection,four-stroke,turbocharged,inter-cooling
Displacement6.7L
Power129Kw
Rotation speed2200r/min
Capacity of hydraulic oil tank280L
Capacity of fuel tank380L
