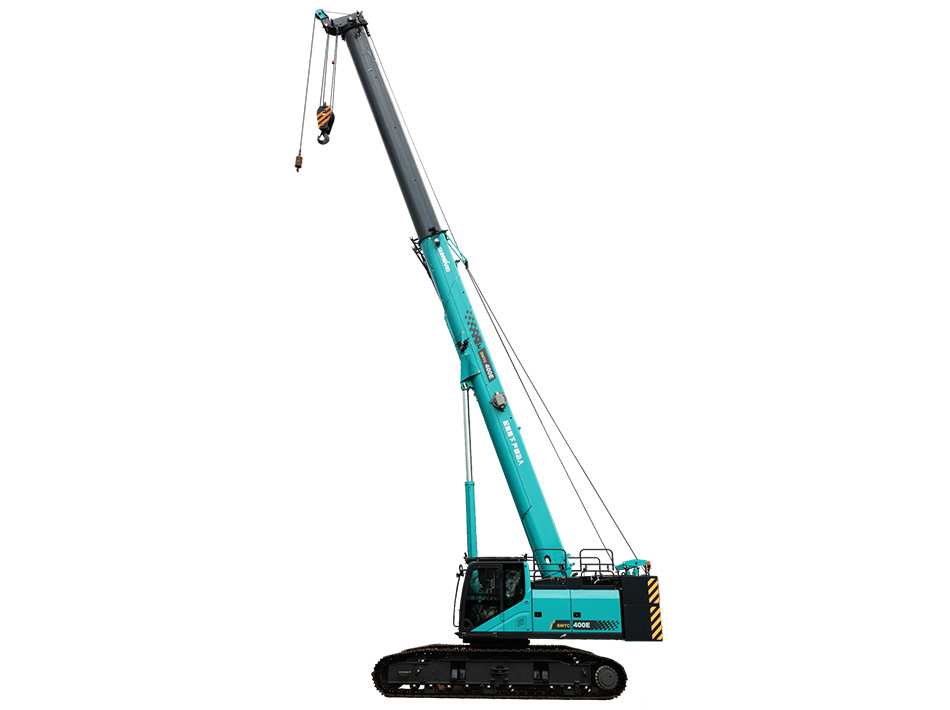

SWTC400E

Technical Parameters

• Dimension parameters
  Total length

  14133mm

  Total width

  4700/2990mm

  Total height

  3180mm

  Center distance between driving and driven wheels

  4968mm

  Track width

  700mm

• Main performance parameters
  Maximum rated lifting capacity

  40t

  Magnification at maximum rated lifting capacity

  10n

  Diameter of lifting wire rope

  Φ16mm

  Maximum lifting moment of basic boom

  160t.m

  Fully-retracted length of main boom

  34m

  Fully-extended length of main boom

  11.4m

  Maximum working amplitude

  44.5m

  Length of jib

  9.2/16m

  Jib mounting angle

  0、15、30°

• Operating speed
  Lifting/lowering time of main boom

  40/45s

  Full extension/retraction time of main boom

  98/100s

  Maximum slewing speed

  2.7r/min

  Boom lifting speed (four sections with no load)

  150m/min

  Jib lifting speed (four sections with no load)

  150m/min

• Driving parameters
  Driving speed

  3/1.24km/h

  Maximum gradeability

  45%

  Ground pressure

  0.07Mpa

• Dynamic parameters
  Engine model

  Cummins QSB6.7-C250

  Engine power

  186kW

  Engine rated speed

  2200r/min

  Engine emission standard

  EU Stage V

• Volume parameters
  Hydraulic fuel tank volume

  650L

  Oil tank capacity

  400L

• Weight parameters
  Counterweight

  13t

  Total mass in driving state

  48.3t
